About this product
- Materials: ABS
- Size: 212mm*90mm*35mm
- Color: Black + Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: ABS
- Size: 212mm*90mm*35mm
- Color: Black + Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | ABS |
|---|---|
| Size | 212mm*90mm*35mm |
| Color | Black + Yellow |
Product details
| Materials | ABS |
|---|---|
| Size | 212mm*90mm*35mm |
| Color | Black + Yellow |
From the supplier

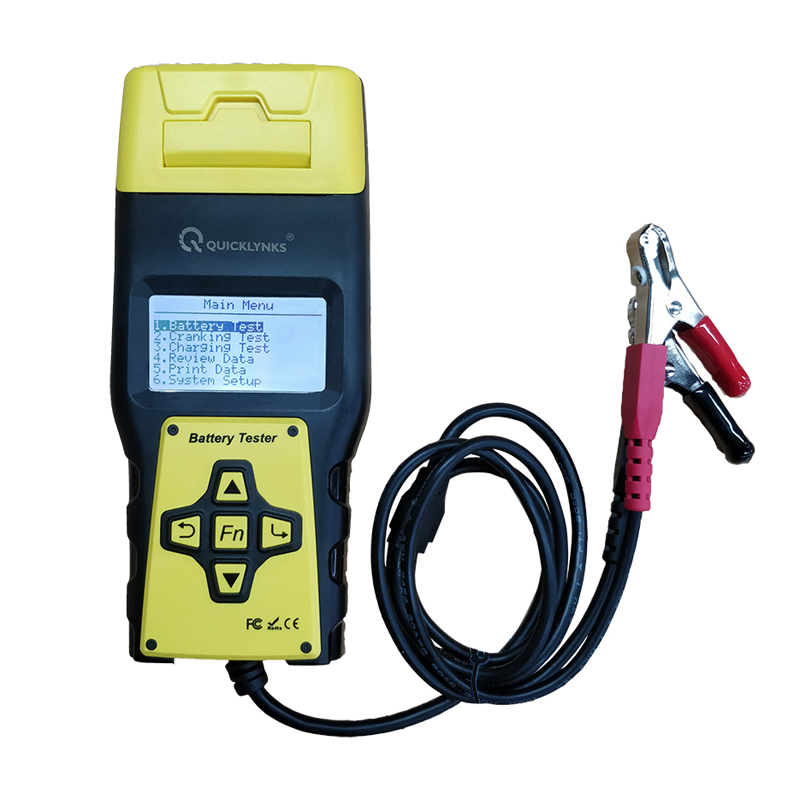

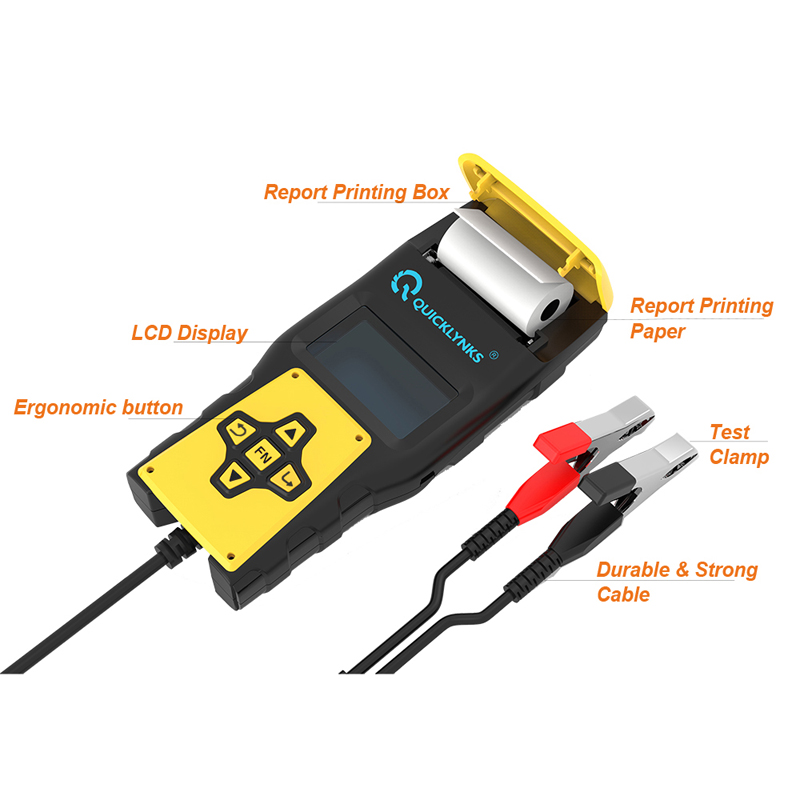

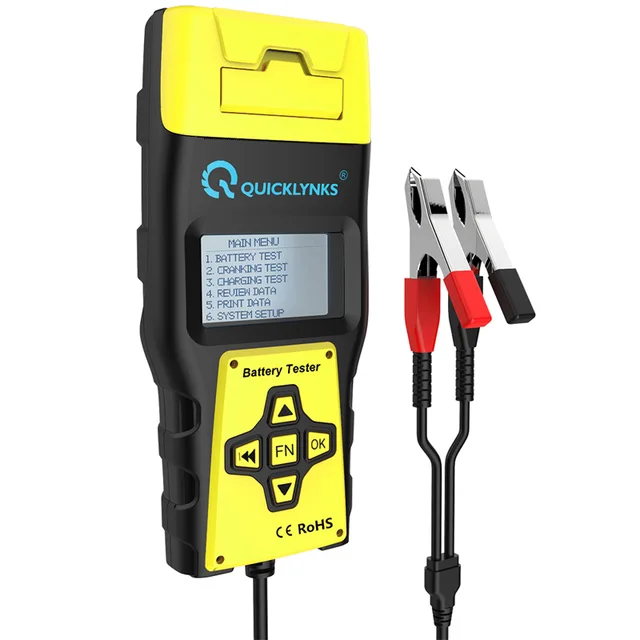

12V/24V Vehicle Battery Tester BA1000 with Built-in Printer
It always connects to the 12V battery in CCA, voltage, resistance, charge and health status, especially for cranking
and charging system test for 12V/24V vehicles, and auto-save testing result. print them via built-in printer.
Features and Benefits
1. Print function via built-in printer.
2. Test battery CCA, voltage, internal resistance, health and charge.
3. Analysis result: Good Battery, Good Recharge, Charge & Retest, Replace, Bad Cell & Replace.
4. Support all battery standards, like JIS, DIN, IEC, EN, SAE, CA, CCA, GB, BCI, MCA.
5. Protection of short-circuit and reverse connection.
6. Review the history record auto-saved.
7. Test cranking system for 12V and 24V vehicles.

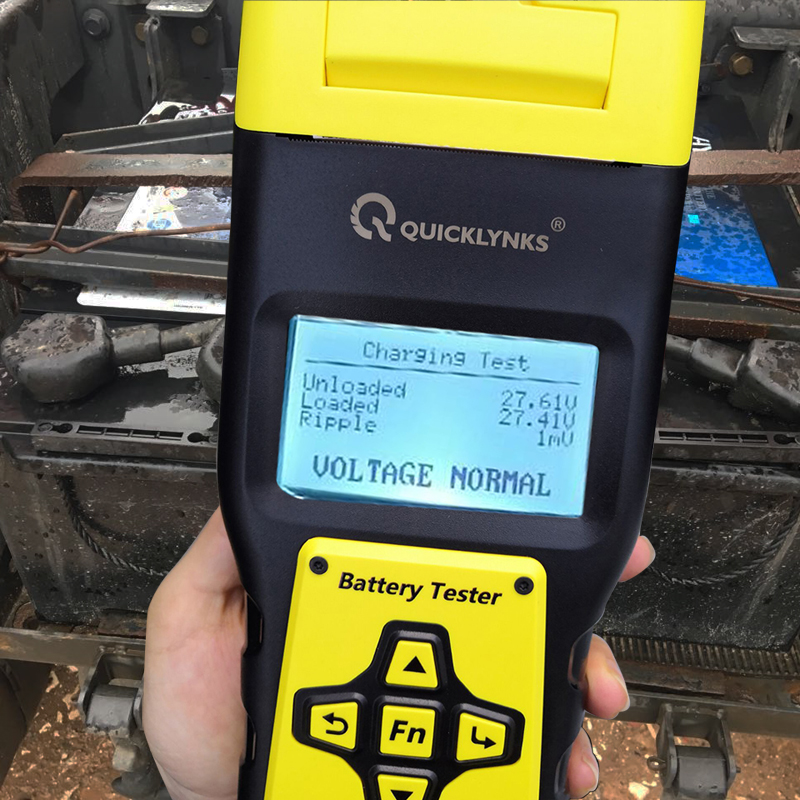

8. Test charging (alternator) system for 12V and 24V vehicles.
9. Test max load voltage for 12V and 24V vehicles.
10. One-click-quick test function key, easy to use for the client.
11. Multilingual operation interface.
Specifications:
Display: Large LCD display (128 x 64,backlit) with adjustable contrast.
Operating Temperature: 0 to 50C (32 to 122 F).
Storage Temperature: -20 to 70C (-4 to 158 F).
Power: 8 to 16 Volts provided via vehicle battery.
System voltage: 12 Volts
Input voltage range: 6V~30V
Testing range: 20 ~ 1000 CCA, 20 ~ 700 DIN, 20 ~ 700 IEC, 2 ~ 120 AH
Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded),
VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell.
The major battery standards JIS, SAE, EN, DIN and IEC are supported.

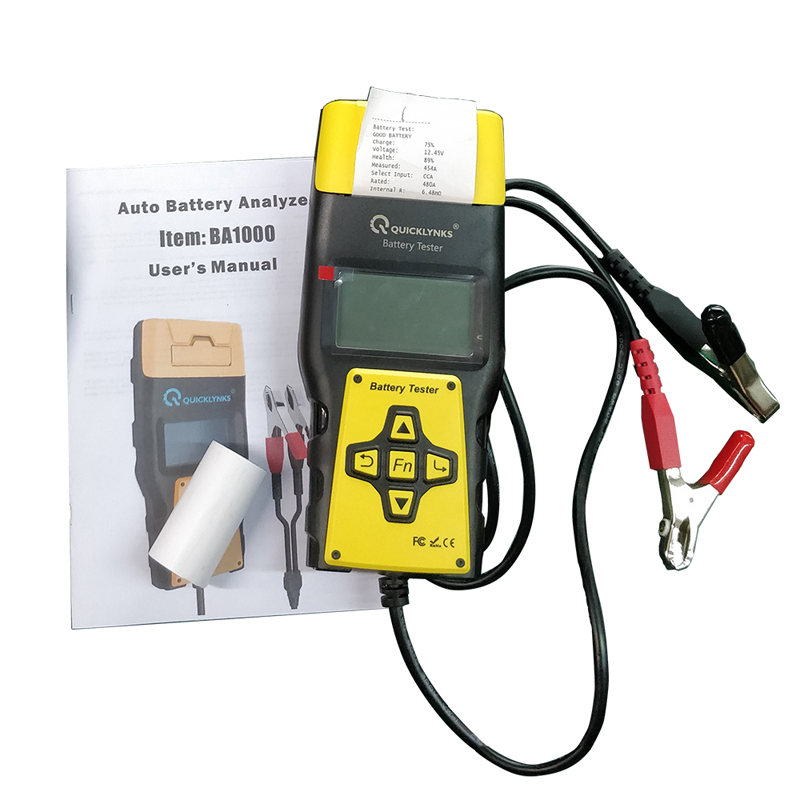

Accessories
User's Manual
2 roll of heat-sensitive paper
Dimensions: Length: 212mm * Width: 90mm * Height: 35mm
Weight: 700g
Color box package
Dimensions: Length: 235mm * Width: 190mm * Height: 85mm
Weight: 1000g
From the supplier
12V/24V Vehicle Battery Tester BA1000 with Built-in Printer
It always connects to the 12V battery in CCA, voltage, resistance, charge and health status, especially for cranking
and charging system test for 12V/24V vehicles, and auto-save testing result. print them via built-in printer.
Features and Benefits
1. Print function via built-in printer.
2. Test battery CCA, voltage, internal resistance, health and charge.
3. Analysis result: Good Battery, Good Recharge, Charge & Retest, Replace, Bad Cell & Replace.
4. Support all battery standards, like JIS, DIN, IEC, EN, SAE, CA, CCA, GB, BCI, MCA.
5. Protection of short-circuit and reverse connection.
6. Review the history record auto-saved.
7. Test cranking system for 12V and 24V vehicles.
8. Test charging (alternator) system for 12V and 24V vehicles.
9. Test max load voltage for 12V and 24V vehicles.
10. One-click-quick test function key, easy to use for the client.
11. Multilingual operation interface.
Specifications:
Display: Large LCD display (128 x 64,backlit) with adjustable contrast.
Operating Temperature: 0 to 50C (32 to 122 F).
Storage Temperature: -20 to 70C (-4 to 158 F).
Power: 8 to 16 Volts provided via vehicle battery.
System voltage: 12 Volts
Input voltage range: 6V~30V
Testing range: 20 ~ 1000 CCA, 20 ~ 700 DIN, 20 ~ 700 IEC, 2 ~ 120 AH
Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded),
VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell.
The major battery standards JIS, SAE, EN, DIN and IEC are supported.
Accessories
User's Manual
2 roll of heat-sensitive paper
Dimensions: Length: 212mm * Width: 90mm * Height: 35mm
Weight: 700g
Color box package
Dimensions: Length: 235mm * Width: 190mm * Height: 85mm
Weight: 1000g
