About this product
- Size: 2100*1350*1250
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Size: 2100*1350*1250
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Size | 2100*1350*1250 |
|---|
Product details
| Size | 2100*1350*1250 |
|---|
From the supplier

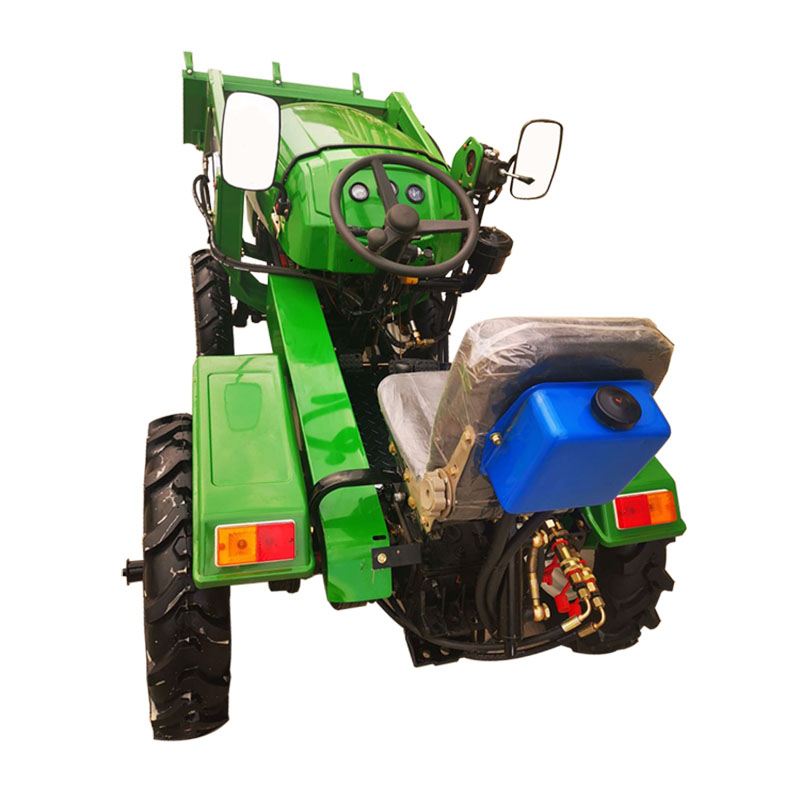

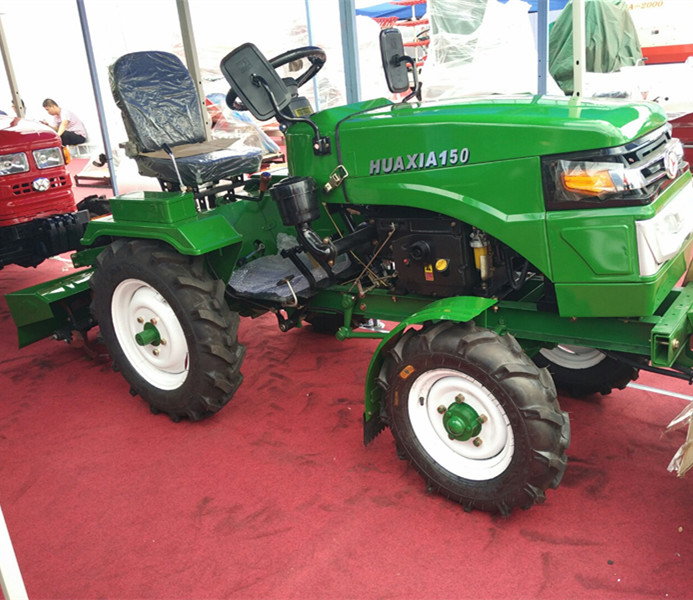

1).OVERALL UNIT
Transmission box: special steel casting transmission
Main dimension(mm): L 2200 x W 970x H 1120
Wheelbase:(mm) 1150
Wheel tread:
front wheel(mm) 850
Rear-wheel(mm) 800
Mini-ground clearance(transmission bottom) (mm) 200
Mini-turning circus radius:(m) 2
Structural weight:(kg) 420
Theoretical speed: km/h
First gear 2.24
second gear 3.48
third gear 5.62
First reverse gear 1.72
Second reverse gear 6.97
2) ENGINE MAIN SPECIFICATION
Engine model: R190 JDZ195
Engine type: horizontal, single cylinder, four stroke
Rated turning speed: r/min 2400
Rated power: HP 10HP 12.5HP
Cooling type: evaporative cooling, condense
(3).DRIVE SYSTEM
1.clutch dry type, double , normally jointing and fricting type.
Final drive: single stage spur gear transmission
3.differential: support conical planetary gear reducer
4.transmission: (3+1)*2 cylinder gear drive
5.brake: external shoe type brake
6.drive type between engine and clutch: triangle belt
7.drive type between PTO and hydraulic pump :V-belt
4).TRAVEL AND TURNING SYSTEM
Front axle: adjustable separating type
Tyre type: front wheel 4.00-8/4.0-12
Rear-wheel 6.00-12/6.5-16
Tyre pressure:
Front wheel: 600kpa
Rear-wheel: 250kpa
Steering gear: worming gear type
Toe-in of front wheel(mm): 4~8
Front-wheel camber: 20±30’
king pin inclination: 70±15’
kingpin caster: 30±15’

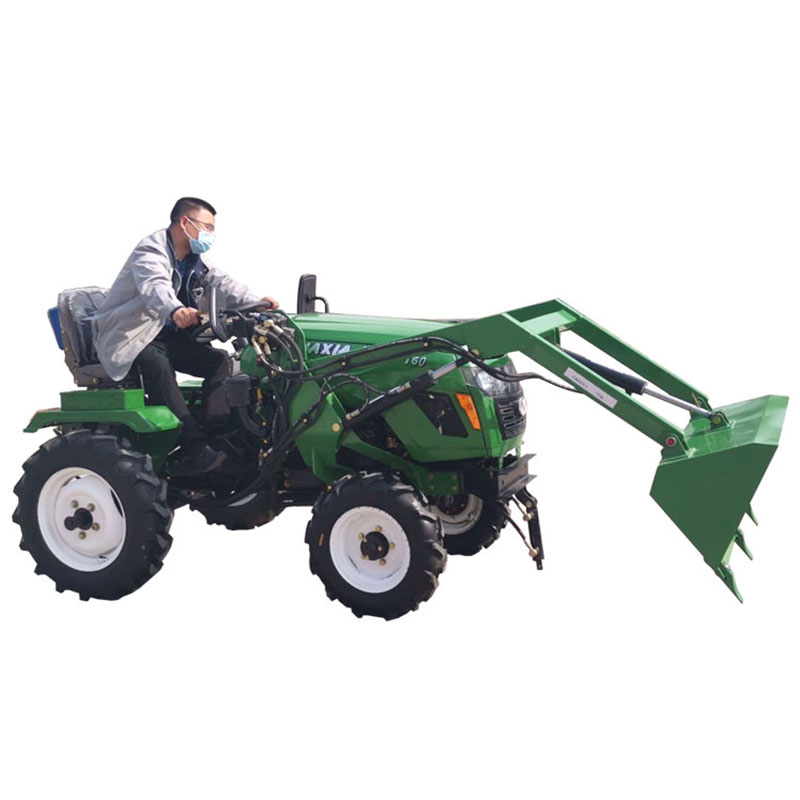

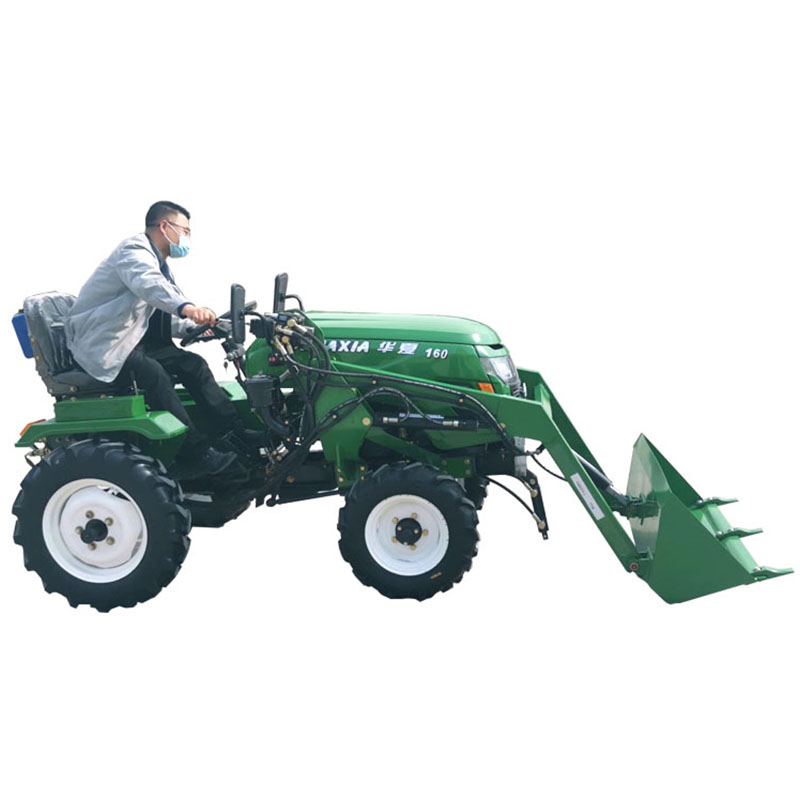

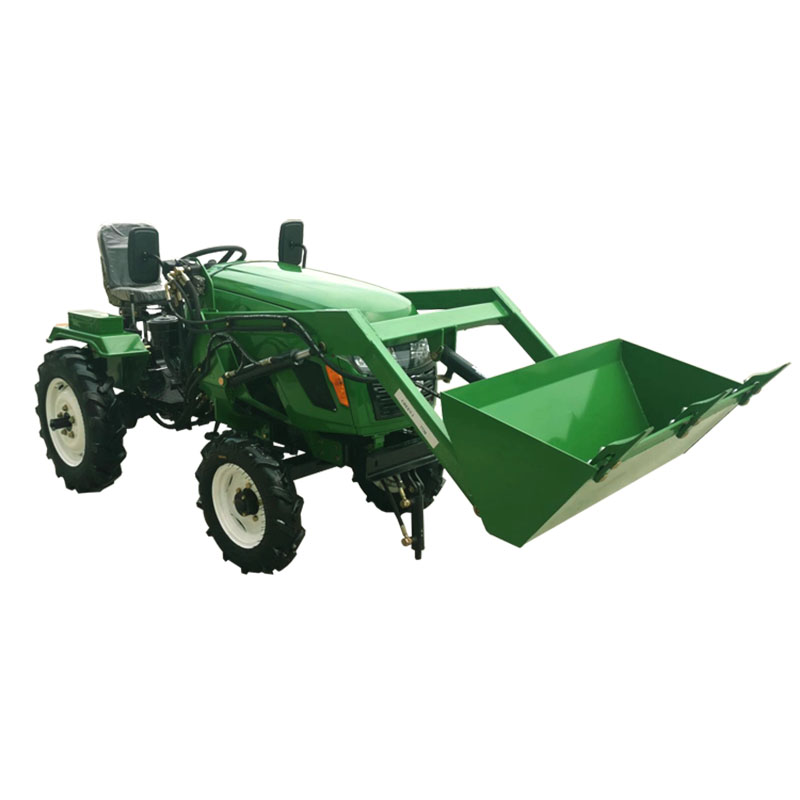

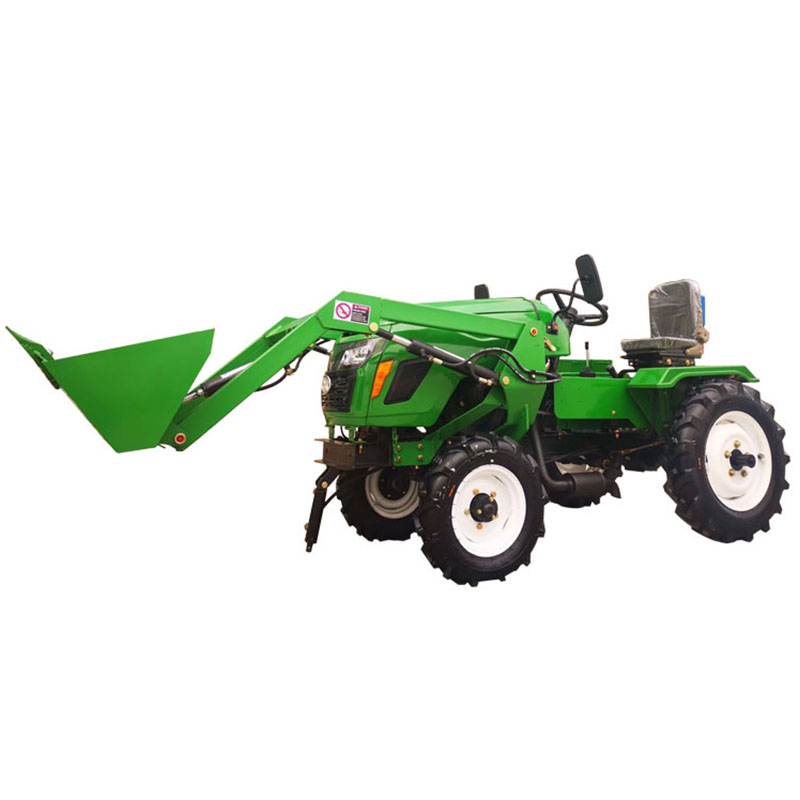

5.WORKING DEVICE:
Lifting mechanism:
(1) manual(lever lifting, ratchet holding.)
(2)hydraulic lifting
(3)Type:split pump : CBN-E304 gear pump
Safety valve setting pressure(mpa): 16
lifting time(s): ≤2
PTO:
1.type:sidely placed dependent type
2.turning speed :r/min: 1378
3.turning direction: clockwise
6).ELECTRICAL DEVICES
Generator type: YONGCI-branded flywheel generator 12V 250W
Front headlight: 12V 40W/100W
Indicator: 12V 20W
Double gear switch: JK107
7).MAIN FILLING QUANTITY
Hydraulic tank: L 1.5
From the supplier
1).OVERALL UNIT
Transmission box: special steel casting transmission
Main dimension(mm): L 2200 x W 970x H 1120
Wheelbase:(mm) 1150
Wheel tread:
front wheel(mm) 850
Rear-wheel(mm) 800
Mini-ground clearance(transmission bottom) (mm) 200
Mini-turning circus radius:(m) 2
Structural weight:(kg) 420
Theoretical speed: km/h
First gear 2.24
second gear 3.48
third gear 5.62
First reverse gear 1.72
Second reverse gear 6.97
2) ENGINE MAIN SPECIFICATION
Engine model: R190 JDZ195
Engine type: horizontal, single cylinder, four stroke
Rated turning speed: r/min 2400
Rated power: HP 10HP 12.5HP
Cooling type: evaporative cooling, condense
(3).DRIVE SYSTEM
1.clutch dry type, double , normally jointing and fricting type.
Final drive: single stage spur gear transmission
3.differential: support conical planetary gear reducer
4.transmission: (3+1)*2 cylinder gear drive
5.brake: external shoe type brake
6.drive type between engine and clutch: triangle belt
7.drive type between PTO and hydraulic pump :V-belt
4).TRAVEL AND TURNING SYSTEM
Front axle: adjustable separating type
Tyre type: front wheel 4.00-8/4.0-12
Rear-wheel 6.00-12/6.5-16
Tyre pressure:
Front wheel: 600kpa
Rear-wheel: 250kpa
Steering gear: worming gear type
Toe-in of front wheel(mm): 4~8
Front-wheel camber: 20±30’
king pin inclination: 70±15’
kingpin caster: 30±15’
5.WORKING DEVICE:
Lifting mechanism:
(1) manual(lever lifting, ratchet holding.)
(2)hydraulic lifting
(3)Type:split pump : CBN-E304 gear pump
Safety valve setting pressure(mpa): 16
lifting time(s): ≤2
PTO:
1.type:sidely placed dependent type
2.turning speed :r/min: 1378
3.turning direction: clockwise
6).ELECTRICAL DEVICES
Generator type: YONGCI-branded flywheel generator 12V 250W
Front headlight: 12V 40W/100W
Indicator: 12V 20W
Double gear switch: JK107
7).MAIN FILLING QUANTITY
Hydraulic tank: L 1.5
