Type

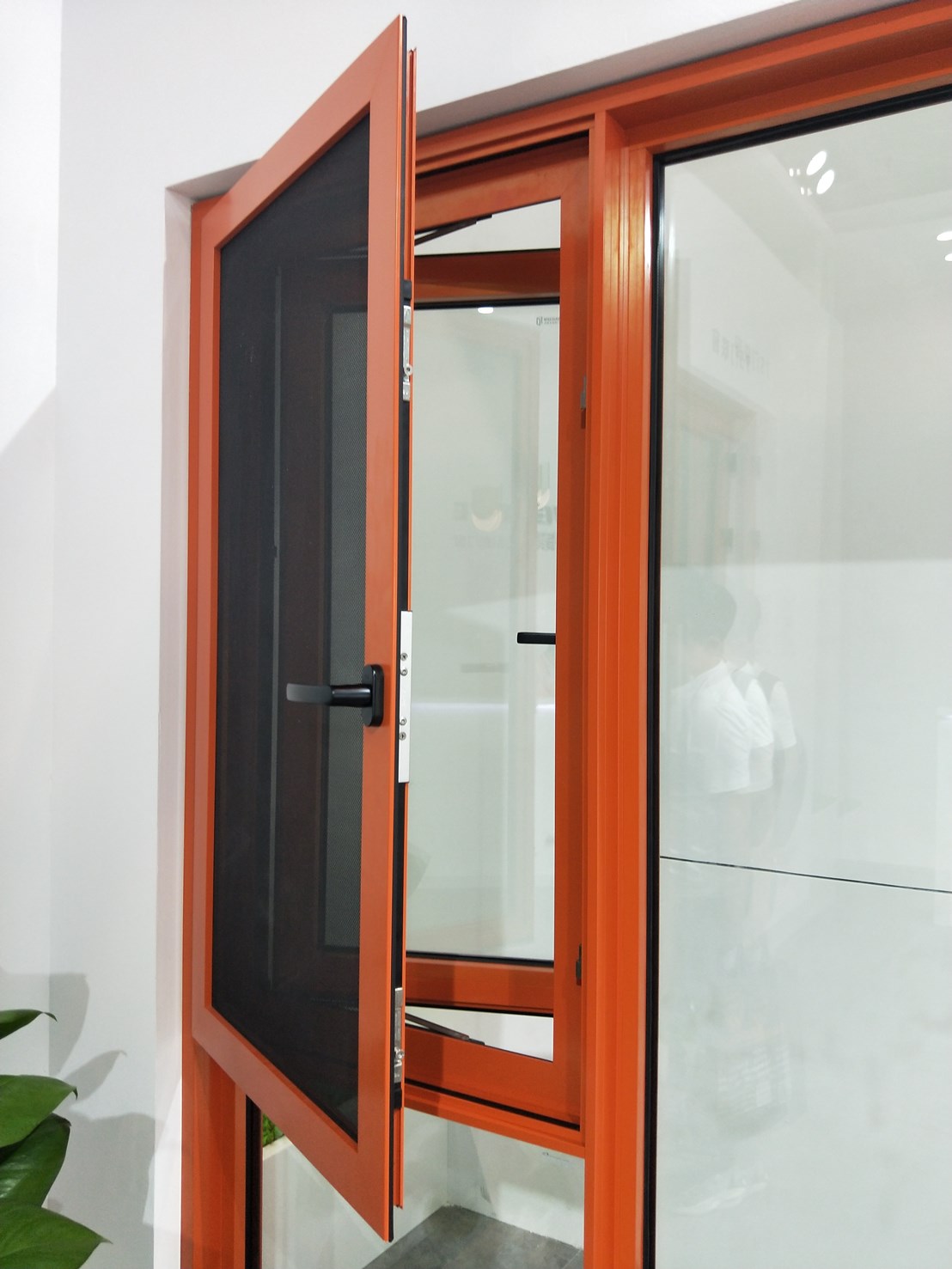

casement window  Open Style
Horizontal
  Opening Pattern
Swing
  Frame Material
Aluminum alloy
  Finish
Spray coating/wood grain/fluorocarbon

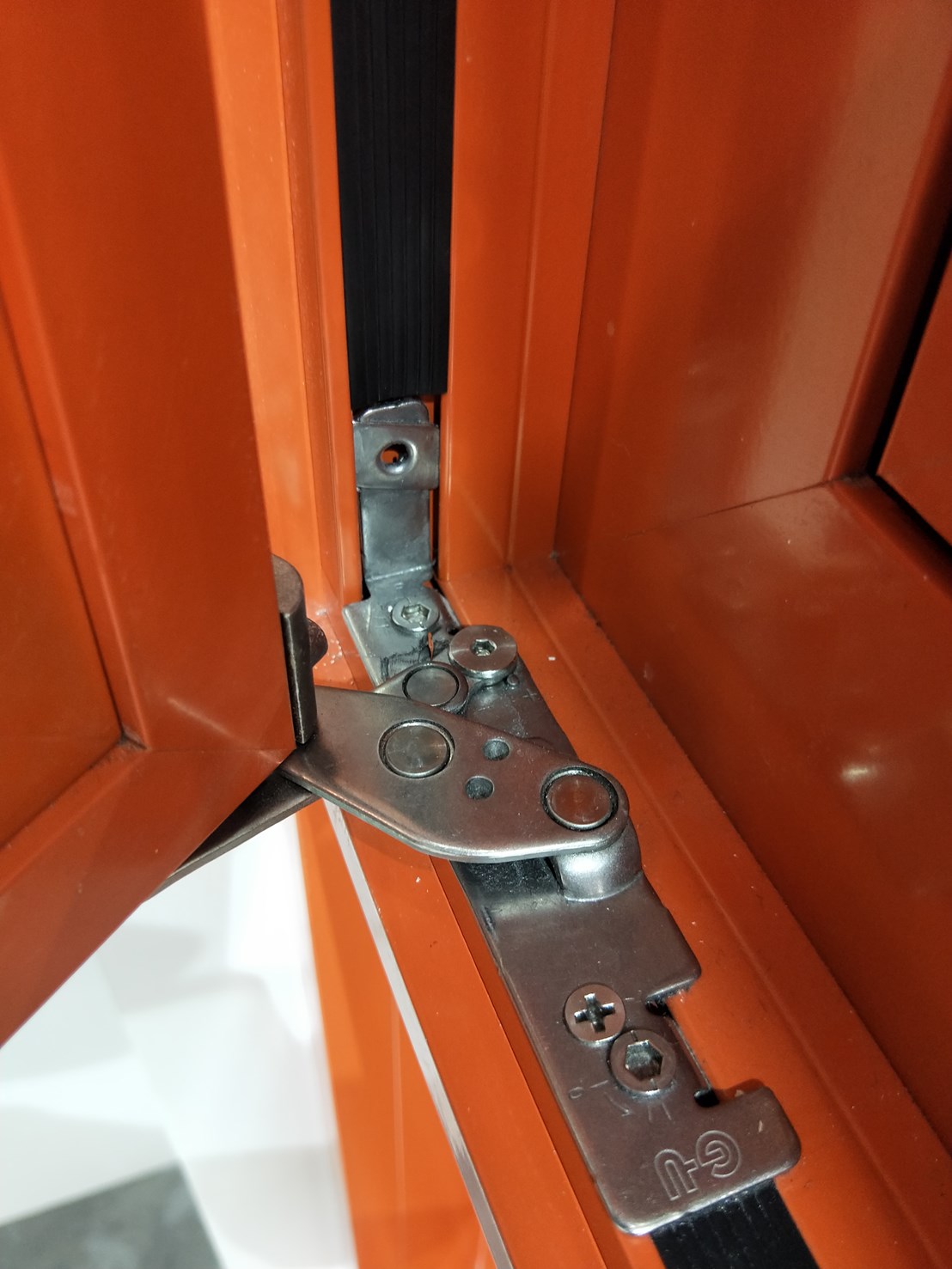

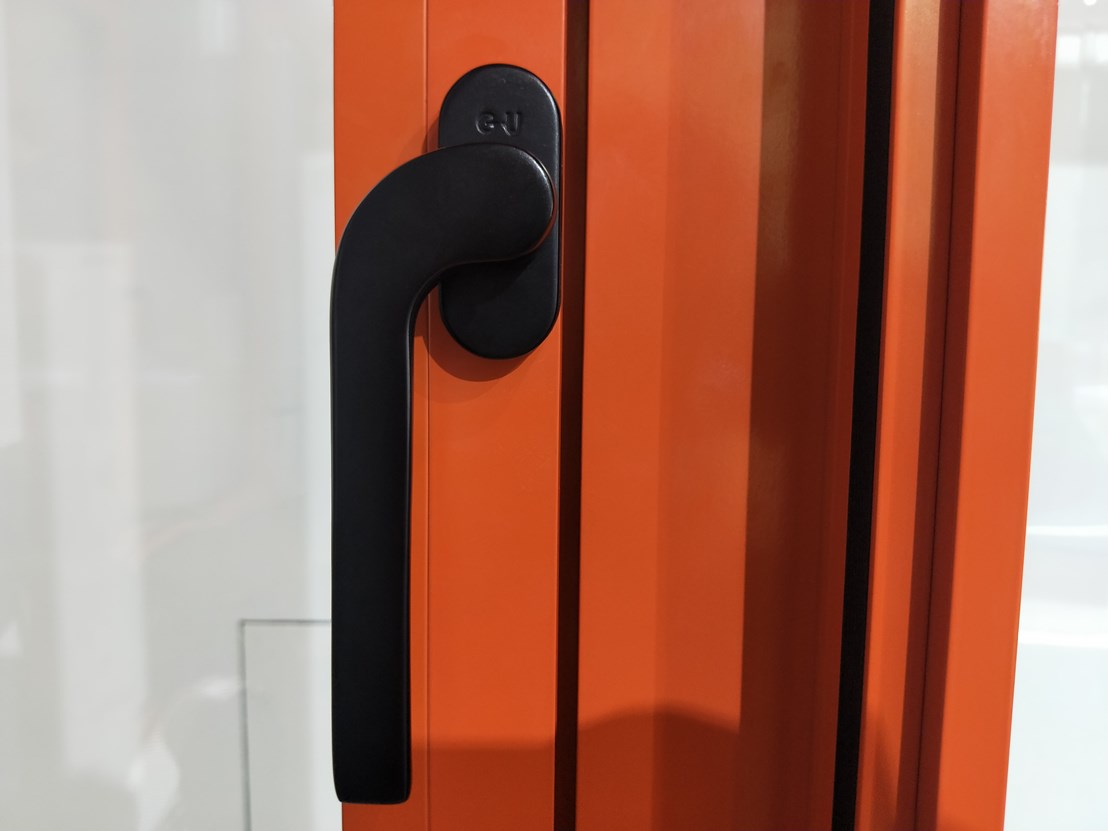

  Hardware
Domestic high quality accessories/imported accessories
  Glass Thickness
As customize
  Glass Standard
Comply with AS2208 & ANSIZ97.1, CE,CCC
  Window standard
Comply with AS2047, CE
  ColorSpray coating/wood grain/fluorocarbon,and so on

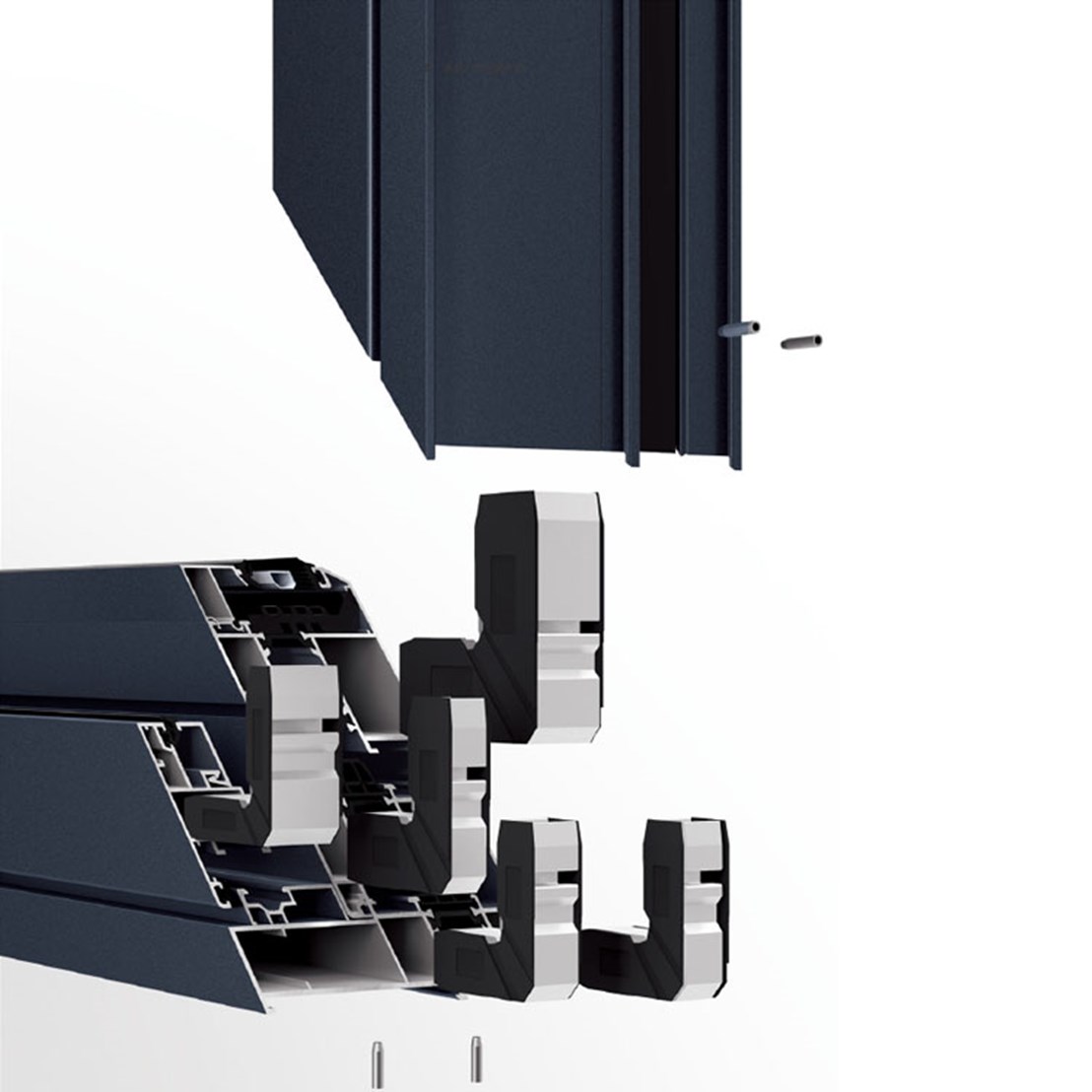

1. Research and develop special pin glue injection angle code, cooperate with the deflector to greatly strengthen the corner strength, and the group angle gap reaches the micron level standard.

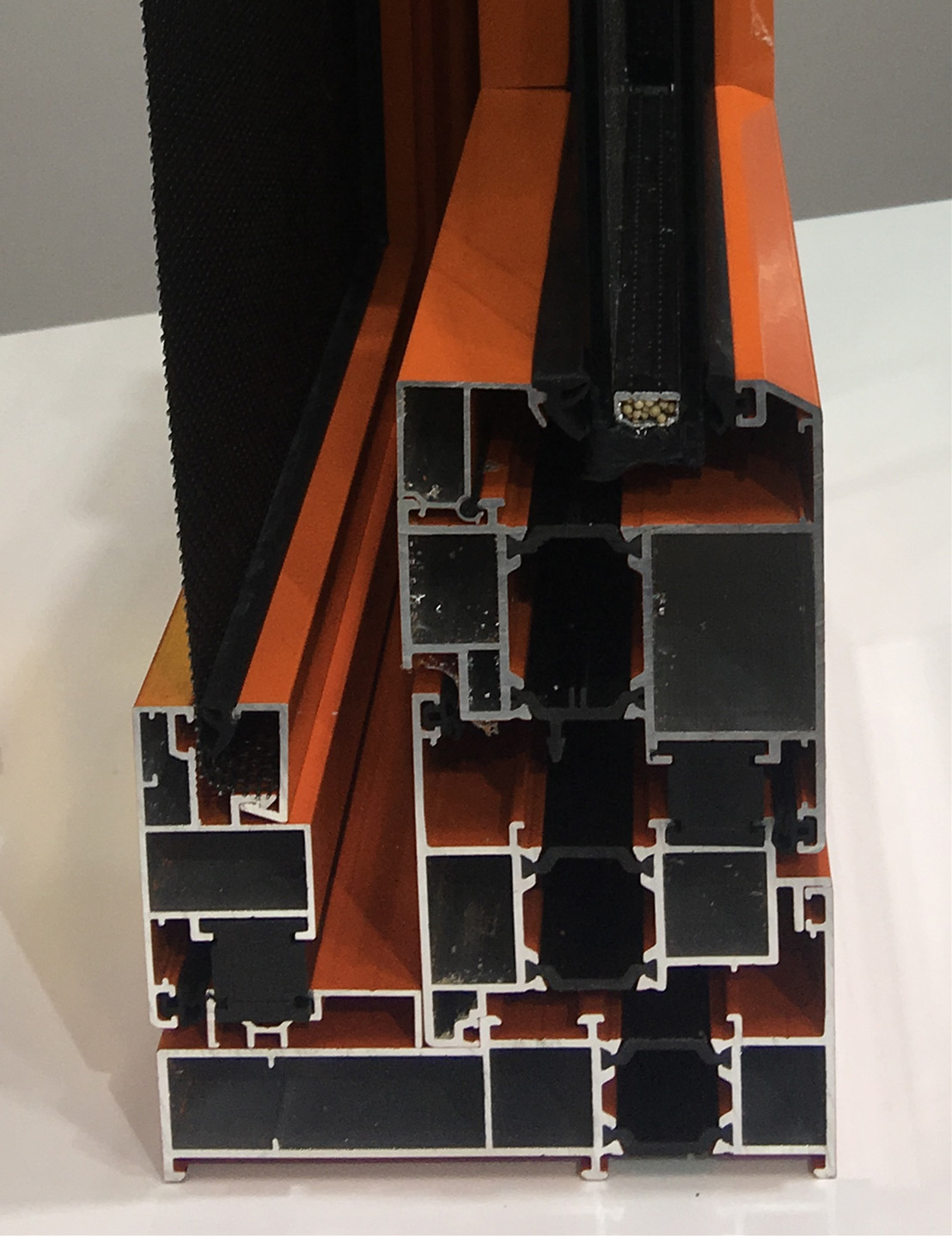

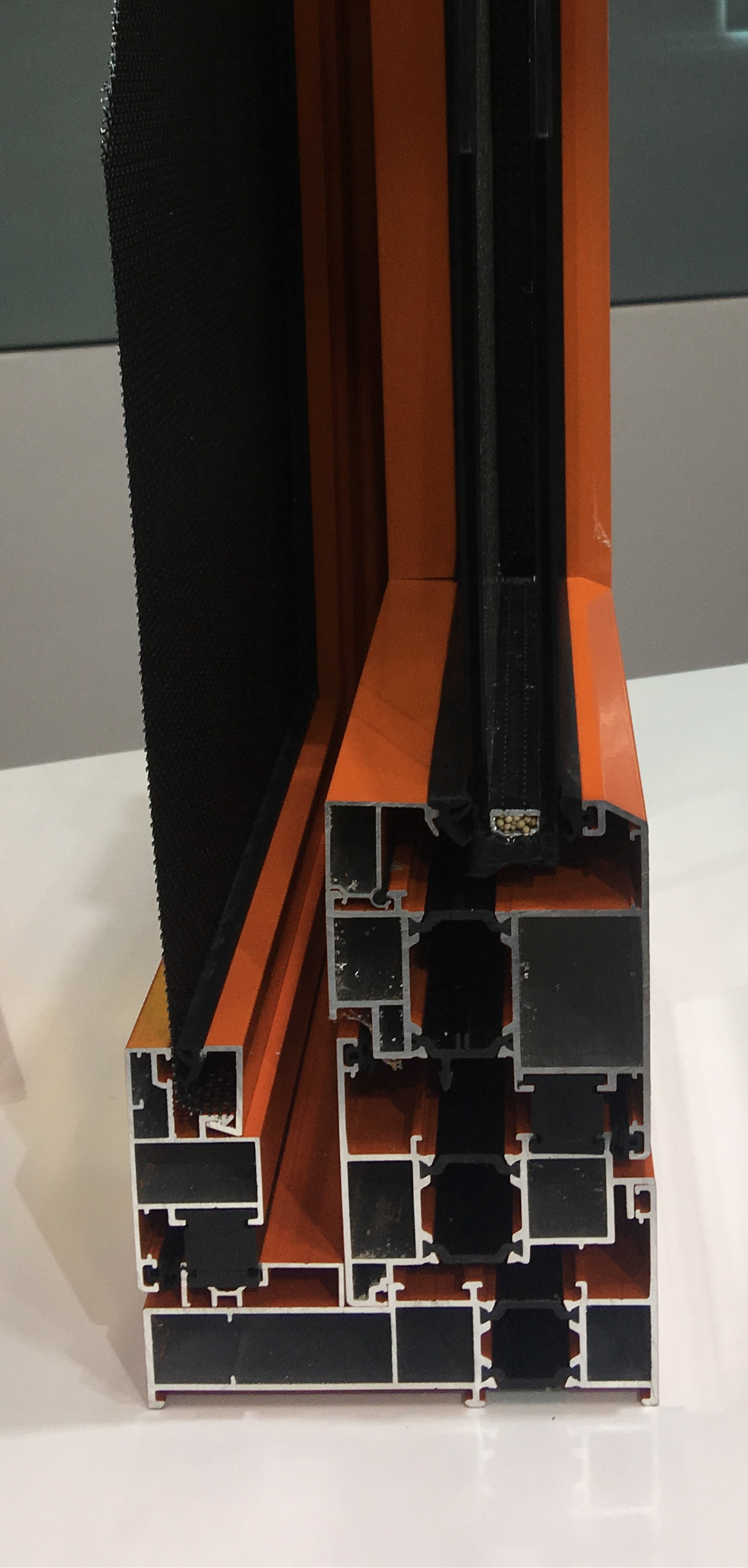

2. Fill the insulation and sound insulation cotton profile cavity and the glass gap, with high heat insulation and high sound insulation effect, automotive grade EPDM rubber strip sealing, anti-aging;
3. Protective pole design, strengthen the design and application of anti-pry and anti-theft railing, children's anti-falling function, and super safety;

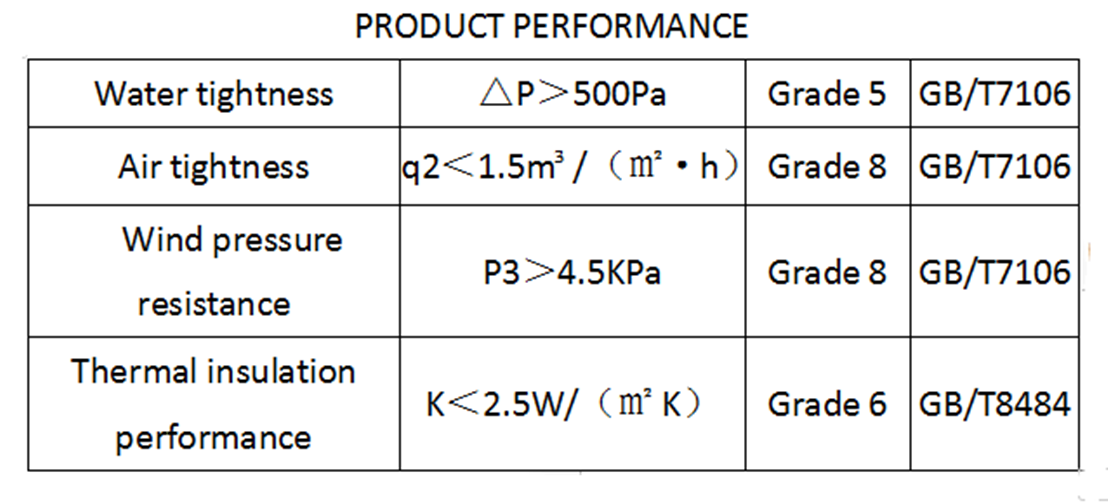

4. Three-way sealing, realizing the structure of equal pressure principle, effectively improving the air tightness, water tightness and sound insulation performance of the window;
5. The gauze is flexible and easy to clean, and it is anti-pattern and insect-proof to improve the immunity of human transmission.
6. Suitable for application: high-rise facade/bedroom/children's room/balcony/living room/garden

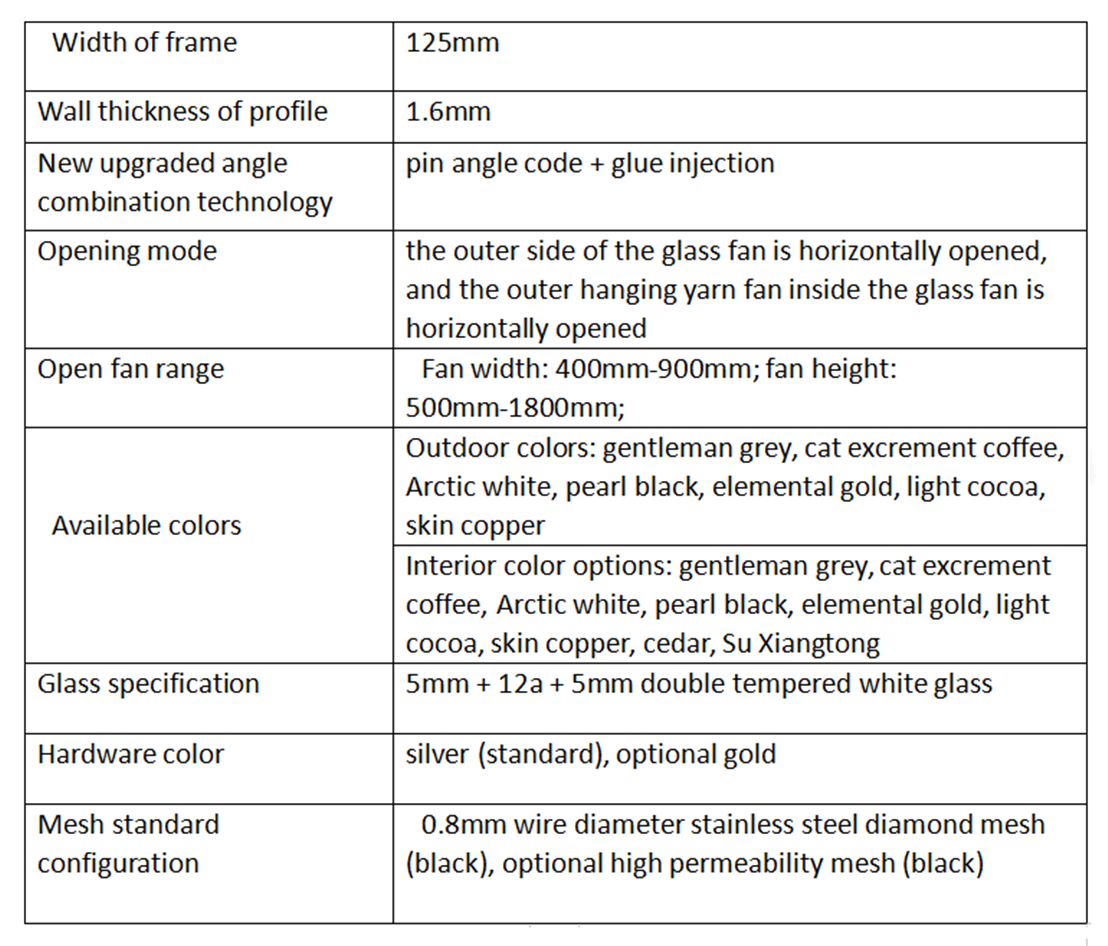

 Width of frame

125mm

Wall thickness of profile

1.6mm

New upgraded angle combination technology

pin angle code + glue injection

Opening mode

the outer side of the glass fan is horizontally opened, and the outer hanging yarn fan inside the glass fan is horizontally opened

Open fan range

 Fan width: 400mm-900mm; fan height: 500mm-1800mm;





 Available colors

Outdoor colors: gentleman grey, cat excrement coffee, Arctic white, pearl black, elemental gold, light cocoa, skin copper

Interior color options: gentleman grey, cat excrement coffee, Arctic white, pearl black, elemental gold, light cocoa, skin copper, cedar, Su Xiangtong

Glass specification

5mm + 12a + 5mm double tempered white glass

Hardware color

silver (standard), optional gold

Mesh standard configuration

 0.8mm wire diameter stainless steel diamond mesh (black), optional high permeability mesh (black)













Project







Company Information

 Ltd. is a subsidiary of Guangdong Weiye Group, mainly engaged in high-end research and development, production, installation, marketing, door and window system development, promotion, application and a complete set of supply chain management and services for doors, windows and curtain wall enterprises.

In order to build a curtain wall doors and windows brand of enterprises, Weiye doors and windows have always advocated "green building" "livable homes" "energy-saving doors and windows" "fashion elements "The practice. The company introduced Germany, Italy, New Zealand and other advanced production lines. Adopting the technical performance equipment of European doors and windows system, we gradually form a first-class curtain wall doors and windows design and manufacturing system with advanced design concept, high management and service system.



The company has advanced design concept system doors and windows, products including "Weijiaye" curtain wall doors and windows system, intelligent doors and windows system, etc., to provide users with a full range if home, umbrellas, security, anti-mosquito, energy saving, low-carbon, intelligent control and other auxiliary products of the solution.

 Weiye doors and windows as China's leather doors and windows system, to build China's high custom doors and windows. The company has been adhering to the "science and technology let Weiye prosperity, let the famous brand" quality concept of development, promote innovation, energy saving, low carbon, high quality products, service marketing, to meet the demand for enterprise core values, based on the Chinese market, see the world. We are committed to building a first-class brand, curtain wall doors and windows enterprise.

Certifications



Packaging



Trade Shows



FAQ

1. Are you a manufacturer or a trading company?

We are a manufacturer.

2. do you accept custom designs?

Yes. We can customize the design according to your requirements. We have a professional design team.

3. what is the purpose of aluminum extrusion?

We use Weiye aluminum profiles and manufacture them ourselves.

4. what is the surface treatment of the profile?

Powder coating, fluorocarbon coating, electrophoresis.
