1-Product Description

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterial in the feed water.

*Raw water Range(OEM): Brackish water TDS 2000-10000 ppm, ground/well water, city water,river/lake water ...

*Capacity (OEM):500LPH-180TPH

*Output water application(OEM):drinking/irrigating/cosmetic/dialysis/ultra-pure water/medical/food ...

2-Technical Parameters

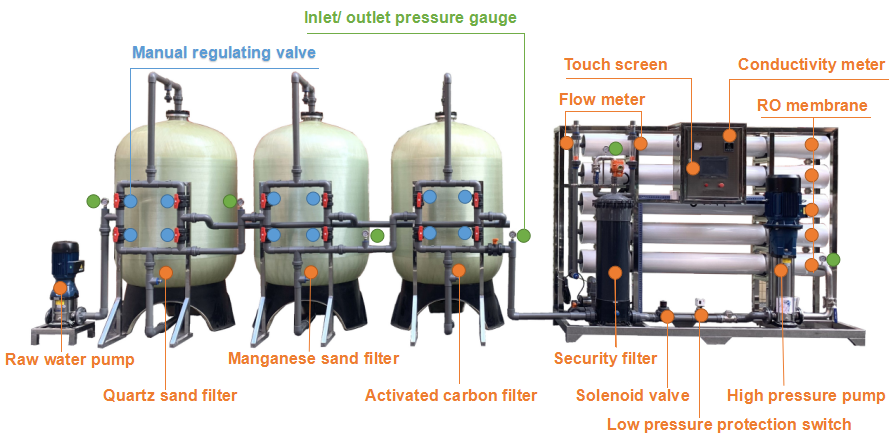

Ro system technical parameters(for raw/well feed water TDS 2000-10000ppm) Product Name Material Brand Usage Raw Water Pump SUS-304/SUS-316 CNP/Other brand Provide needed pressure for pre-treatment filter Sand Filter FRP/SUS-304/SUS-316 China domestic brand Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health. Carbon Filter FRP/SUS-304/SUS-316 China domestic brand Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. Water Softener(Optional) FRP/SUS-304/SUS-316 China domestic brand Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water. Security Filter FRP/SUS-304/SUS-316 China domestic brand Remove 5 micro particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree. High Pressure Pump SUS-304/SUS-316 CNP/Other brand Provide needed pressure for RO system RO Membrane VONTRON/Other brand Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts. UV/Ozone generator SUS-304/SUS-316 China domestic brand Kill bacteria in water. UV for direct drinking water. Ozone generator for bottle water

3-Main Features

1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance
3.RO system uses imported USA DOW membrane
4.Automatic switch on when lack of water,and switch off when no water or full of water
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7.Production water conductivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

4-Replacement time of consumable parts

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. RO membrane: replaced about every 2 year
We suggest customers buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to be replaced every month
