Engine

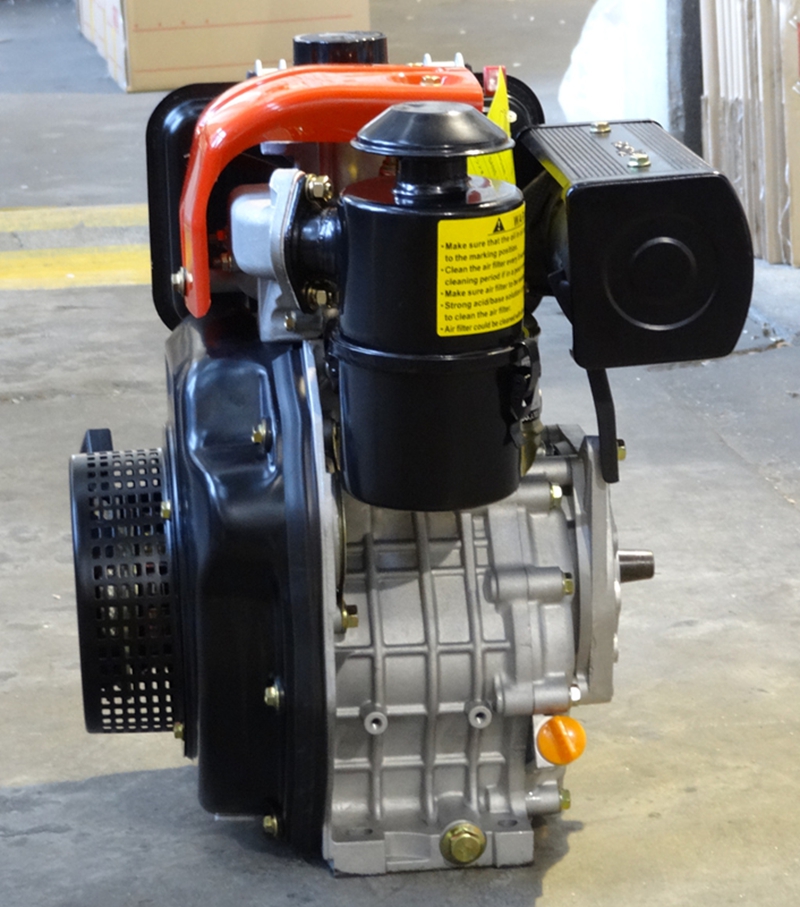

10Hp Air Cooled Single Cylinder Diesel Engine KA186FA Italy model
Wuxi Kaiao Power Machinery Co.,LTD10/10 fairsManufacturerModel KA186FA
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
10Hp Air Cooled Single Cylinder Diesel Engine KA186FA Italy model
Wuxi Kaiao Power Machinery Co.,LTD10/10 fairsManufacturerModel KA186FA
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 520*520*570
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Jiangsu, China
About this product
- Size: 520*520*570
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Jiangsu, China
Product details
| Size | 520*520*570 |
|---|
Product details
| Size | 520*520*570 |
|---|
From the supplier
ModelKA186FA Italy modelRated output(HP/rpm) 7.9HP/3000 8.6HP/3600Rated output(KW/rpm)5.7KW/3000 6.3KW/3600Engine typeSingle-cylinder, vertical, four-stroke, air-cooled, direct injectionCylinder Diameter*stroke(mm)86X72Piston displacement (L)0.418Compression ratio19Rated speed(rpm)3000/3600Max. no-load speed(r/min)108% of Rated rotary speedMin. no-load speed(r/min)1300Lubrication systemPressure splash complex TypeEngine starting systemRecoil starter or Electric starterOutput terminal rotationAnticlockWiseFuel oil modelSummer:0#, Winter:-10#Fuel tank capacity (L)5.5Fuel consumption rate(g/kW.h)275.1/3000 281.5/3600Oil consumption rate(g/kW.h)4.08Oil gradeCD grade or SAE10W-30,15W-40Valve clearance(cold state) mm0.10-0.15Lube oil capacity (L)1.65Starting motor (V,kW)12V 0.8kWCharging generator(V,A)12V 3ABattery capacity(V,AH)Above 12V-36AHDimension (L*W*H)(mm)520*455*570Net weight(kg)45
From the supplier
ModelKA186FA Italy modelRated output(HP/rpm) 7.9HP/3000 8.6HP/3600Rated output(KW/rpm)5.7KW/3000 6.3KW/3600Engine typeSingle-cylinder, vertical, four-stroke, air-cooled, direct injectionCylinder Diameter*stroke(mm)86X72Piston displacement (L)0.418Compression ratio19Rated speed(rpm)3000/3600Max. no-load speed(r/min)108% of Rated rotary speedMin. no-load speed(r/min)1300Lubrication systemPressure splash complex TypeEngine starting systemRecoil starter or Electric starterOutput terminal rotationAnticlockWiseFuel oil modelSummer:0#, Winter:-10#Fuel tank capacity (L)5.5Fuel consumption rate(g/kW.h)275.1/3000 281.5/3600Oil consumption rate(g/kW.h)4.08Oil gradeCD grade or SAE10W-30,15W-40Valve clearance(cold state) mm0.10-0.15Lube oil capacity (L)1.65Starting motor (V,kW)12V 0.8kWCharging generator(V,A)12V 3ABattery capacity(V,AH)Above 12V-36AHDimension (L*W*H)(mm)520*455*570Net weight(kg)45
About the supplier
Wuxi Kaiao Power Machinery Co.,LTD
Main products: Diesel engine,Engine Water Pump Machine Sets,Generating Sets,Diesel Engines
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2007
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
75
trust
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2007
Canton Fair booth: 18.1F41-42 · Power Machinery and Electric Power (140th session)
