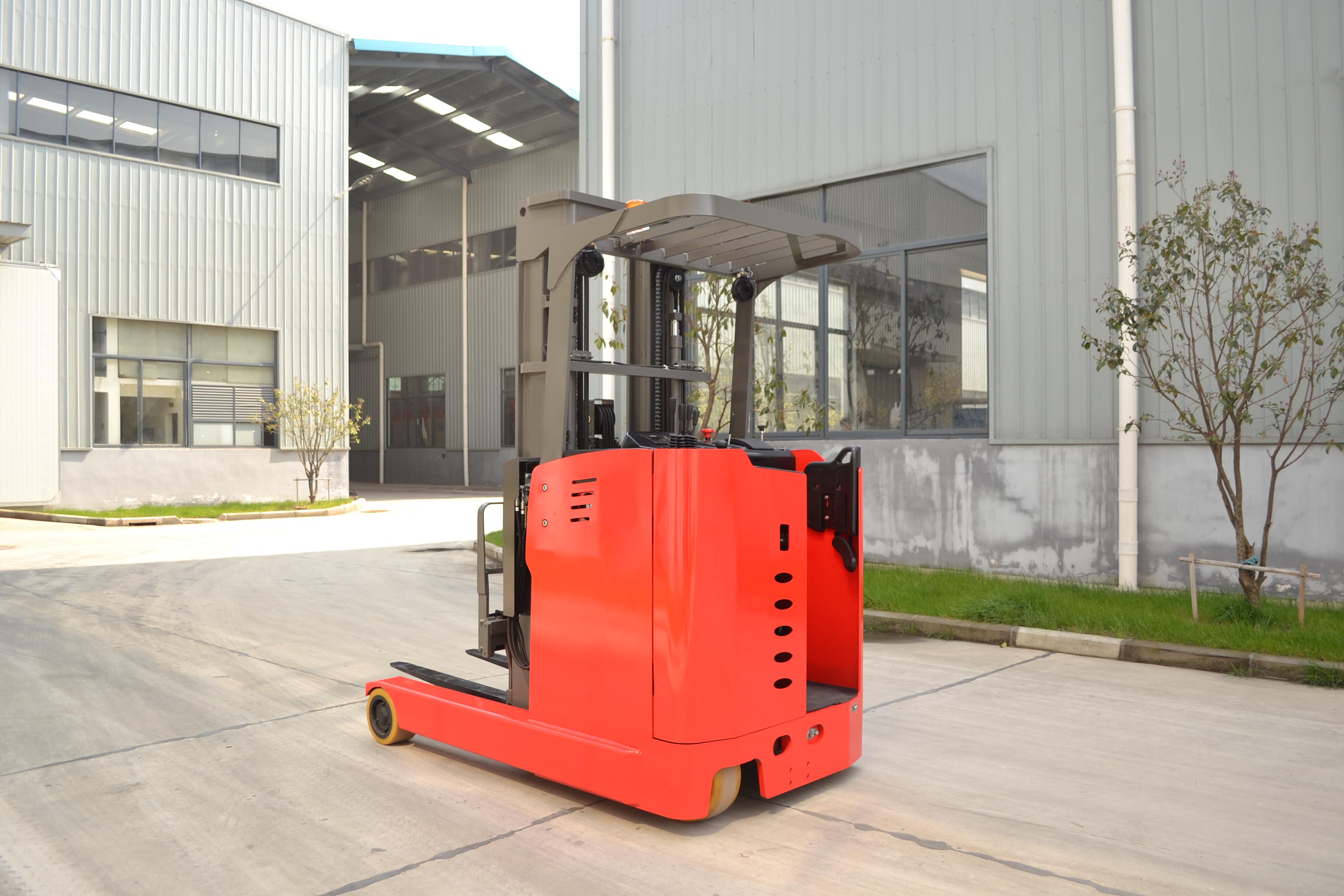

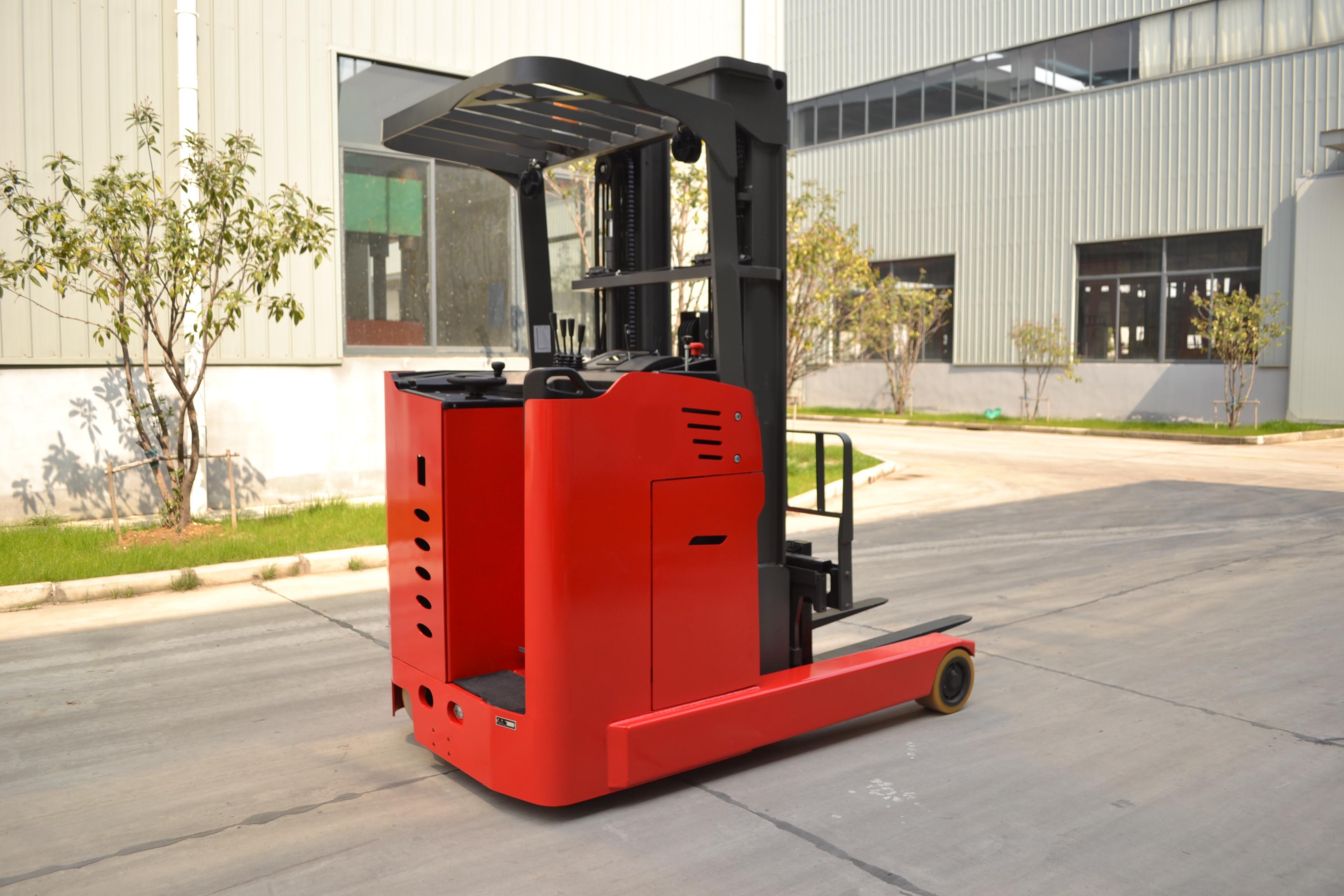

1.5T ELECTRIC REACH STACKER

　　　　　　　　　Manufacturers　VMAX VMAX VMAX VMAX VMAX VMAX VMAX Model　MF10MF12MF12SQMF15DMF15DSQMF15MF15SQPower Type　BatteryBatteryBatteryBatteryBatteryBatteryBatteryOperation Type　Stand-on Stand-onStand-on Stand-onStand-on Stand-onStand-on Stand-onStand-on Stand-onStand-on Stand-onStand-on Stand-onRated CapacityQ(kg)1000120012001500150015001500Load CenterC(mm)500500500500500500500Front Overhangx(mm)130140140140140180180Wheelbasey(mm)1170127012701345134513451345　　　　　　　　　Service weight(incl. battery)kg1750200022502100235024502850Bridge load at no load, drive side / load sidekg1210/5401440/5601550/700//1625/8251900/950Bridge load at full load, fork moving forward, drive side / Load sidekg430/2320570/2630580/2870//660/3290600/3750Bridge load at full load, fork retracted, drive side / load  sidekg1120/16301420/17801500/1950//1510/24401600/2750　　　　　　　　　Wheel type　Polyurethane PUPolyurethane PUPolyurethane PUPolyurethane PUPolyurethane PUPolyurethane PUPolyurethane PULoading wheelmmΦ210×85Φ210×85Φ210×85Φ210×85Φ210×85Φ254×104Φ254×104Driving wheelmmΦ230×110Φ230×110Φ230×110Φ230×110Φ230×110Φ343×108Φ343×108Stable wheel sizemmΦ180×76Φ180×76Φ180×76Φ180×76Φ180×76Φ180×76Φ180×76 Tyres,front/rear　2/1 x+22/1 x+22/1 x+22/1 x+22/1 x+22/1 x+22/1 x+2Tread,driveb10(mm)615615615615615680680Tread,loadb11(mm)8998999999999999641064　　　　　　　　　Tilt of fork, Forward/Backwardα/β(°)/3/53/53/53/53/53/5Height of mast closedh1(mm)1980208020802080208020822142Full free lifting heighth2(mm)//1480【1】/1480【1】4001542【1】Lifting heighth3(mm)3000300045003000450030004500Height of mast open(incl. Load-Backrest)h4(mm)3925396054553960545539605460Overhead guard heighth6(mm)2250225022502250225022502250Pedal heighth7(mm)300300300300300300300Overall lengthl1(mm)18642059【2】20892070209822592284Overll Width b1/b2(mm)100010001084/10001084/10001084/100010901090/1170Fork Dimensionsl/e/s(mm)920/100/351070/100/351070/100/351070/100/351070/100/351070/100/351070/100/35Width of Load-Backrestb3(mm)80496496496496410881088Width across forksb5(mm)220-610220-610220-610220-610220-610222-650【3】222-750【4】Inner spacing of the legsb4(mm)722722822822822750856Forward distancel4(mm)550618【2】590696669550525Mast clearancem1(mm)80808080808282Aisle width for pallet 1000*1200 crosswayAst(mm)24282488【2】25072528254526702688Aisle width for pallet 800*1200 crosswayAst(mm)24702518【2】25432540256427182740Turning radiusWa(mm)1394149214921580158015941594　　　　　　　　　Driving speed(load/unload)km/h6/77/87/87/87/89/109/10Lifting speed(load/unload)mm/s110/160150/190130/190【3】150/190100/190【2】240/400200/350【5】Lowering speed(load/unload)mm/s210/190190/170170/130【3】190/170170/130【2】300/270320/280【5】Max. climbing ability%(tanθ )≤8/≤10【4】≤10≤10≤8/≤10【3】≤8/≤10【3】≤10≤10Brake type　MechanicalMechanicalMechanicalMechanicalMechanicalMechanicalMechanical　　　　　　　　　Driving motorkw1.52.32.32.32.34.54.5Lifting motorkw23.53.53.53.57.57.5Battery Voltage/capcityV/Ah24/28024/35024/42024/42024/42048/30048/300Battery weightkg260300335335335500500Steering system　Electric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power Steering　　　　　　　　　Battery Change Type　Side Slide ChangeSide Slide ChangeSide Slide ChangeSide Slide ChangeSide Slide ChangeSide Slide ChangeSide Slide Change

　　　　　　
　　　　　　　　
Manufacturers　MiMAMiMAMiMAMiMAMiMAMiMA
Model　MF20MF20SQMF25MF25SQMF30MF30SQ
Power Type　BatteryBatteryBatteryBatteryBatteryBattery
Operation Type　Stand-on Stand-onStand-on Stand-onStand-on Stand-onStand-on Stand-onStand-on Stand-onStand-on Stand-on
Rated CapacityQ(kg)200020002500250030003000
Load CenterC(mm)500500500500500500
Front Overhangx(mm)180180183.5181183.5181
Wheelbasey(mm)154515451720172019201920
　　　　　　　　
Service weight(incl. battery)kg275029503300358034003680
Bridge load at no load, drive side / load sidekg//////
Bridge load at full load, fork moving forward, drive side / Load sidekg//////
Bridge load at full load, fork retracted, drive side / load  sidekg//////
　　　　　　　　
Wheel type　Polyurethane PUPolyurethane PUPolyurethane PUPolyurethane PUPolyurethane PUPolyurethane PU
Loading wheelmmΦ254×104Φ254×104Φ267×135Φ267×135Φ267×135Φ267×135
Driving wheelmmΦ343×108Φ343×108Φ380×165Φ380×165Φ380×165Φ380×165
Stable wheel sizemmΦ180×76Φ180×76Φ204×76Φ204×76Φ204×76Φ204×76
 Tyres,front/rear　2/1 x+22/1 x+22/1 x+22/1 x+22/1 x+22/1 x+2
Tread,driveb10(mm)680680726726726726
Tread,loadb11(mm)106410641135113511351135
　　　　　　　　
Tilt of fork, Forward/Backwardα/β(°)3/53/53/52/63/52/6
Height of mast closedh1(mm)208221422082229220822292
Full free lifting heighth2(mm)801542【1】801550【1】801550【1】
Lifting heighth3(mm)300045003000450030004500
Height of mast open(incl. Load-Backrest)h4(mm)396054603960546040505550
Overhead guard heighth6(mm)225022502300230023002300
Pedal heighth7(mm)300300350350350350
Overall lengthl1(mm)229323302387243624872536
Overll Width b1/b2(mm)1090/11701090/11701190/12701190/12701190/12701190/1270
Fork Dimensionsl/e/s(mm)1070/100/401070/100/401070/100/451070/100/451070/125/451070/125/45
Width of Load-Backrestb3(mm)108810881088108811481148
Width across forksb5(mm)222-750【3】222-750【3】222-750【3】222-750【3】250-750250-750
Inner spacing of the legsb4(mm)856856892892892892
Forward distancel4(mm)717677825775925875
Mast clearancem1(mm)828282828282
Aisle width for pallet 1000*1200 crosswayAst(mm)275027732894291930453066
Aisle width for pallet 800*1200 crosswayAst(mm)276227932883292130033039
Turning radiusWa(mm)178417841995199521922192
　　　　　　　　
Driving speed(load/unload)km/h9/109/109/109/108/108/10
Lifting speed(load/unload)mm/s220/380180/330【4】240/320220/300【4】220/320200/300【3】
Lowering speed(load/unload)mm/s310/260290/240【4】340/290310/260【4】340/290310/260【3】
Max. climbing ability%(tanθ )≤10≤10≤10≤10≤10≤10
Brake type　MechanicalMechanicalMechanicalMechanicalMechanicalMechanical
　　　　　　　　
Driving motorkw4.54.55.55.55.55.5
Lifting motorkw7.57.58.68.68.68.6
Battery Voltage/capcityV/Ah48/30048/30048/40048/40048/40048/400
Battery weightkg500500650650650650
Steering system　Electric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power SteeringElectric Hydraulic Power Steering　　　　　　　　　
Battery Change Type　Side Slide ChangeSide Slide ChangeSide Slide ChangeSide Slide ChangeSide Slide ChangeSide Slide Change

Power system

Equipped with Chinese powerful and reliable battery  with excellent enviromental performance

Security system

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.

Lighting system

Equipped with full set of LED lamps,which are brighter and energy saving.

Reliable lifting system

Wide-view mast design,providing superior vision,making the operation more security.

High performance hydraulic system

Equipped with load sensing priority hydraulic system,flxible steering,mast lifting speed increased by 20%.

Comfortable driving space

Lengthened wheelbase design,reasonable functional layout,super comfortable and larger driving space.
Standard export packing, triangular wood, strapping, foam bags.

Our factoryGate

Reception area

Office

Workshop

Certificate

BV

CE

SGS

ISO

Our team

Exhibision

In india Exhibition

Poland Exhibition

South Africa Exhibition

China Canton Fair

Our forklifts advantages

Safety

Intelligent starting system , forklift hanging gear start prevent function , it improves the operation safety and longer gearbox service life.

Hydraulic power brake system , large capacity accumulator , reliabledriving and emergency brakinge.

Overhead guard with high-strength steel plate one stamping , pro -vide driver more sophisticated security.

Standard equipped button parking brake , effectively prevent the hand brake from accidentally release.



Comfort

Ergonomic design, rational operating device layout, equipped with adiustable seat (adjustment up to 150 mm )and steering wheel.

All forklift models standard with hydraulic steering system, easy and comfort to operate.



Advancement

Word famous imported diesel and gasoline engine, Japan TCM gearbox for options,intelligent LCD instrument, CAN, Controller Area Network, real-timedisplay of engine and forklift’s Working information



Reliability

Cooling system meet the requirements of the China standard. Theinter-cooling, scattered water, oil scattered are independent lay-out, which gratly increase the engine, gearbox and other core components quality.Hydraulic system gives large-capacity oil absorption and oil returnfilter to ensure efficient work.Engine standard with two-stage filter design(cyclone type filter+air dry filter).



Reliable steering system

The steering system adopying new technology not only ensure steady steering, quick positioningand steering, but also ensure the driver' s safety.



A reliable mast

Emphasis on the inherent quality of the mast has provided operator a reliable security . Wide view mast makes vision more clearly.We adopted the mast channel which has the world-class quality .The corss-section of mast channel has been in -creased and the structure become more strong.



New drive and control system

Adop the international electric actuators and makes the truck steering more stable , and output power stronger .New electronic blanker improves the comfort and safety of the operation



High performance hydraulic system

Load sensing priority steering hydraulic system design , flexible steering , mast lift speed increased by 20%.

Tilt cylinder, lifting cylinder and steering cylinder are equipped with oil seal as standard; lifting cylinder is equipped with lowering buffer function as standard.



Comfortable driving space

All accessories like engine , gear boxare support by domestic and worldfamous brand , high quality , reliable after-sales.

Why do you choose us?

1.24 hours on line service:

Whatsapp:008613721027153,wechat:8613721027153,email:tss@vmaxchina.com.

2.We are the factory,not the trading company.Could arrange you people to our factory learn the forklift relevant knowledges.

3.We could help you to attend your local exhibition.

4. Prompt delivery.

5.Good quality with nice price.

6.One year or 2000hours Warranty.

7. Flexible policies as clients requests,such as make different colors,OEM,etc.

8.Good after service
