04157756 high quality FL912 Diesel engine part cylinder liner
xingtai Haoheng trading co.,ltd8/10 fairsForeign Trade CompanyModel FL912
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
04157756 high quality FL912 Diesel engine part cylinder liner
xingtai Haoheng trading co.,ltd8/10 fairsForeign Trade CompanyModel FL912
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
Products Description
Product Name

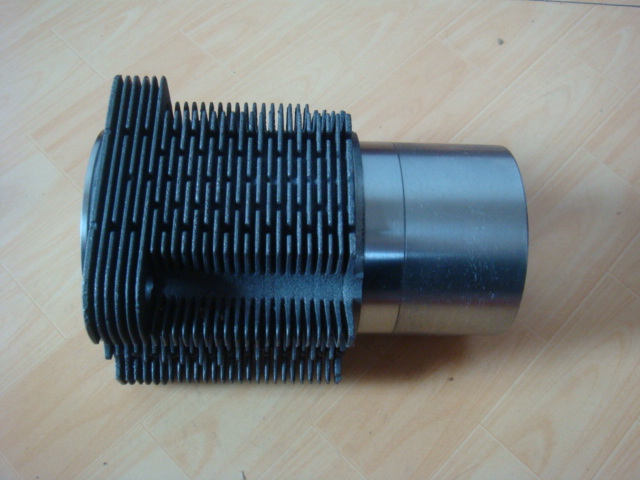

Air cooling Diesel Engine Cylinder liner
OEM NO
02137828 / 04157756 / 02231924
USED ON
FL912
Number of ribs
26
Outer diameter
110mm
Piston diameter
100mm
Length
222.3mm
Flange
120mm
Fitted height
137.3mm
Machining:
Finished
A cylinder that is fitted to the engine block to form the cylinder and is one critical function part that forms the engine
interior. In Japan, they are usually called Cylinder Liners, but some countries (companies) call them Cylinder Sleeves.
The cylinder liner is a sleeve in which the piston of an engine reciprocates. The life of a cylinder between its re-bores depends
on two main factors:
1. Abrasion depends on the atmospheric condition and the efficiency of the air filter and oil filter. Dusty atmospheric air is
more harmful as it increases abrasion in the cylinder.
2. Corrosion of the cylinder is caused due to the corrosive products of combustion, which are formed after burning fuel with air. Corrosion is accelerated at low cylinder temperature due to acid-bearing moisture on the cylinder walls.
The use of separate barrels or sleeves, which are known as cylinder liners, provides a long life to the cylinder. These cylinder liners are made of superior material and are fitted in the cylinder block. The liners are removable and can be replaced when worn or damaged. The liners should have good wear resistance and the ability to retain oil to lubricate the surface between the walls and the piston rings.
.
wholesale for these engine serial spare parts,
such as for FL 912,913,914,413,511,1011,1012,1013,2011,2012,2013 etc
A cylinder that is fitted to the engine block to form the cylinder and is one critical function part that forms the engine
interior. In Japan, they are usually called Cylinder Liners, but some countries (companies) call them Cylinder Sleeves.
The cylinder liner is a sleeve in which the piston of an engine reciprocates. The life of a cylinder between its re-bores depends
on two main factors:
1. Abrasion depends on the atmospheric condition and the efficiency of the air filter and oil filter. Dusty atmospheric air is
more harmful as it increases abrasion in the cylinder.
2. Corrosion of the cylinder is caused due to the corrosive products of combustion, which are formed after burning fuel with air. Corrosion is accelerated at low cylinder temperature due to acid-bearing moisture on the cylinder walls.
The use of separate barrels or sleeves, which are known as cylinder liners, provides a long life to the cylinder. These cylinder liners are made of superior material and are fitted in the cylinder block. The liners are removable and can be replaced when worn or damaged. The liners should have good wear resistance and the ability to retain oil to lubricate the surface between the walls and the piston rings.
.
Related Products
wholesale for these engine serial spare parts,
such as for FL 912,913,914,413,511,1011,1012,1013,2011,2012,2013 etc
From the supplier
Products Description
Product Name
Air cooling Diesel Engine Cylinder liner
OEM NO
02137828 / 04157756 / 02231924
USED ON
FL912
Number of ribs
26
Outer diameter
110mm
Piston diameter
100mm
Length
222.3mm
Flange
120mm
Fitted height
137.3mm
Machining:
Finished
A cylinder that is fitted to the engine block to form the cylinder and is one critical function part that forms the engine
interior. In Japan, they are usually called Cylinder Liners, but some countries (companies) call them Cylinder Sleeves.
The cylinder liner is a sleeve in which the piston of an engine reciprocates. The life of a cylinder between its re-bores depends
on two main factors:
1. Abrasion depends on the atmospheric condition and the efficiency of the air filter and oil filter. Dusty atmospheric air is
more harmful as it increases abrasion in the cylinder.
2. Corrosion of the cylinder is caused due to the corrosive products of combustion, which are formed after burning fuel with air. Corrosion is accelerated at low cylinder temperature due to acid-bearing moisture on the cylinder walls.
The use of separate barrels or sleeves, which are known as cylinder liners, provides a long life to the cylinder. These cylinder liners are made of superior material and are fitted in the cylinder block. The liners are removable and can be replaced when worn or damaged. The liners should have good wear resistance and the ability to retain oil to lubricate the surface between the walls and the piston rings.
.
wholesale for these engine serial spare parts,
such as for FL 912,913,914,413,511,1011,1012,1013,2011,2012,2013 etc
A cylinder that is fitted to the engine block to form the cylinder and is one critical function part that forms the engine
interior. In Japan, they are usually called Cylinder Liners, but some countries (companies) call them Cylinder Sleeves.
The cylinder liner is a sleeve in which the piston of an engine reciprocates. The life of a cylinder between its re-bores depends
on two main factors:
1. Abrasion depends on the atmospheric condition and the efficiency of the air filter and oil filter. Dusty atmospheric air is
more harmful as it increases abrasion in the cylinder.
2. Corrosion of the cylinder is caused due to the corrosive products of combustion, which are formed after burning fuel with air. Corrosion is accelerated at low cylinder temperature due to acid-bearing moisture on the cylinder walls.
The use of separate barrels or sleeves, which are known as cylinder liners, provides a long life to the cylinder. These cylinder liners are made of superior material and are fitted in the cylinder block. The liners are removable and can be replaced when worn or damaged. The liners should have good wear resistance and the ability to retain oil to lubricate the surface between the walls and the piston rings.
.
Related Products
wholesale for these engine serial spare parts,
such as for FL 912,913,914,413,511,1011,1012,1013,2011,2012,2013 etc
