Product description

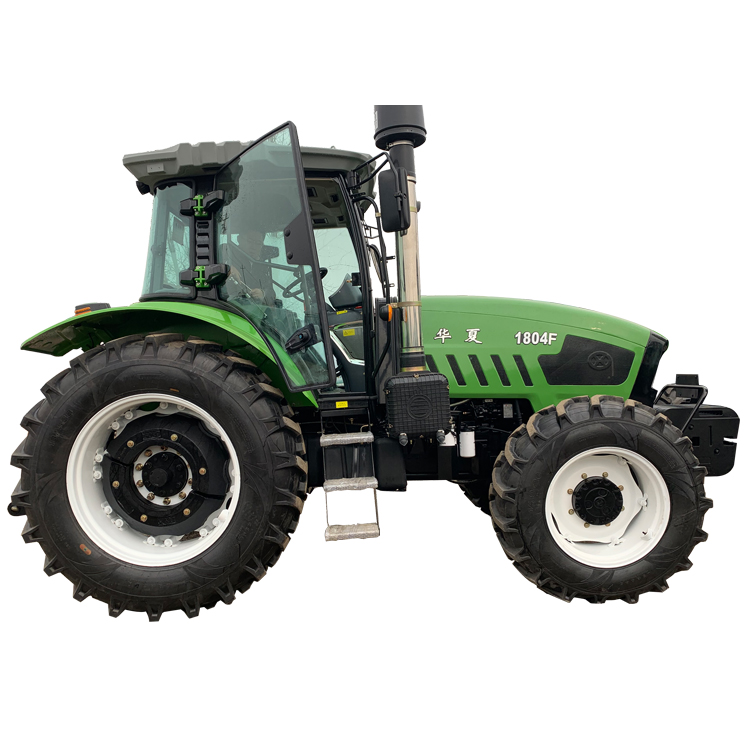

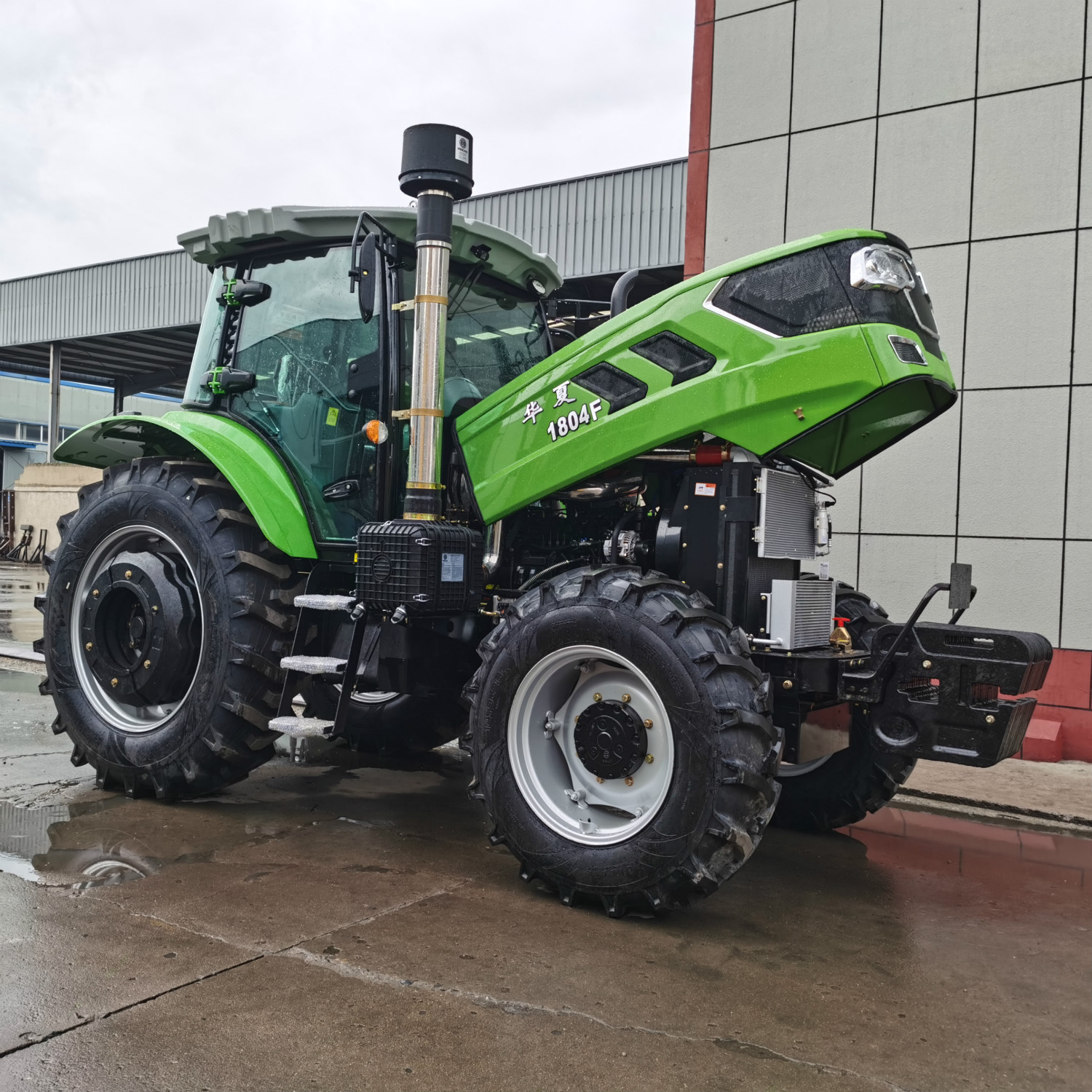

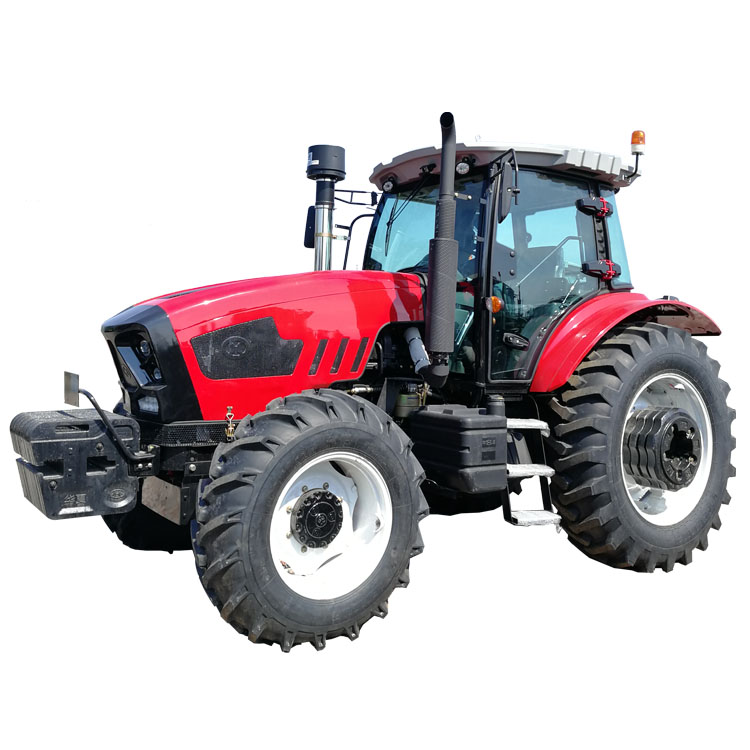

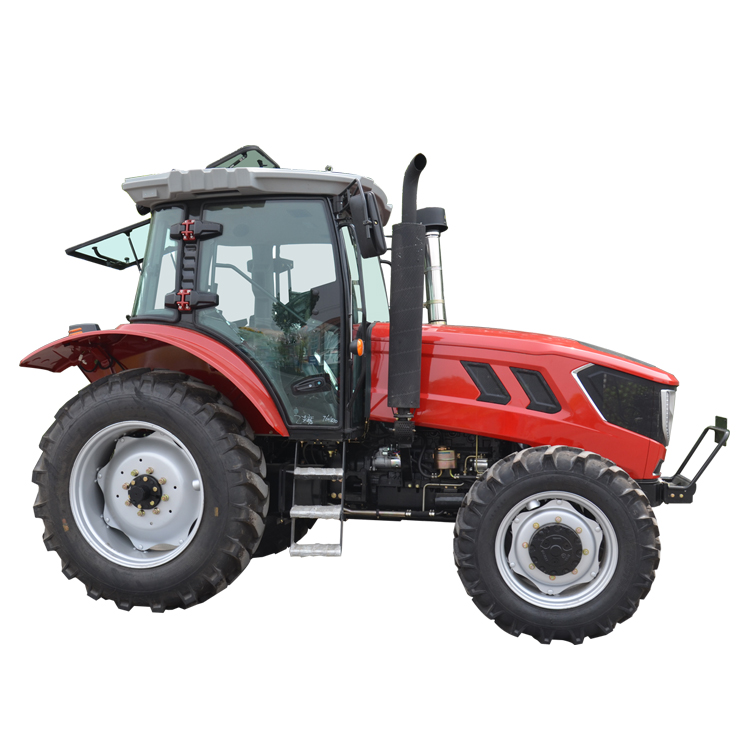

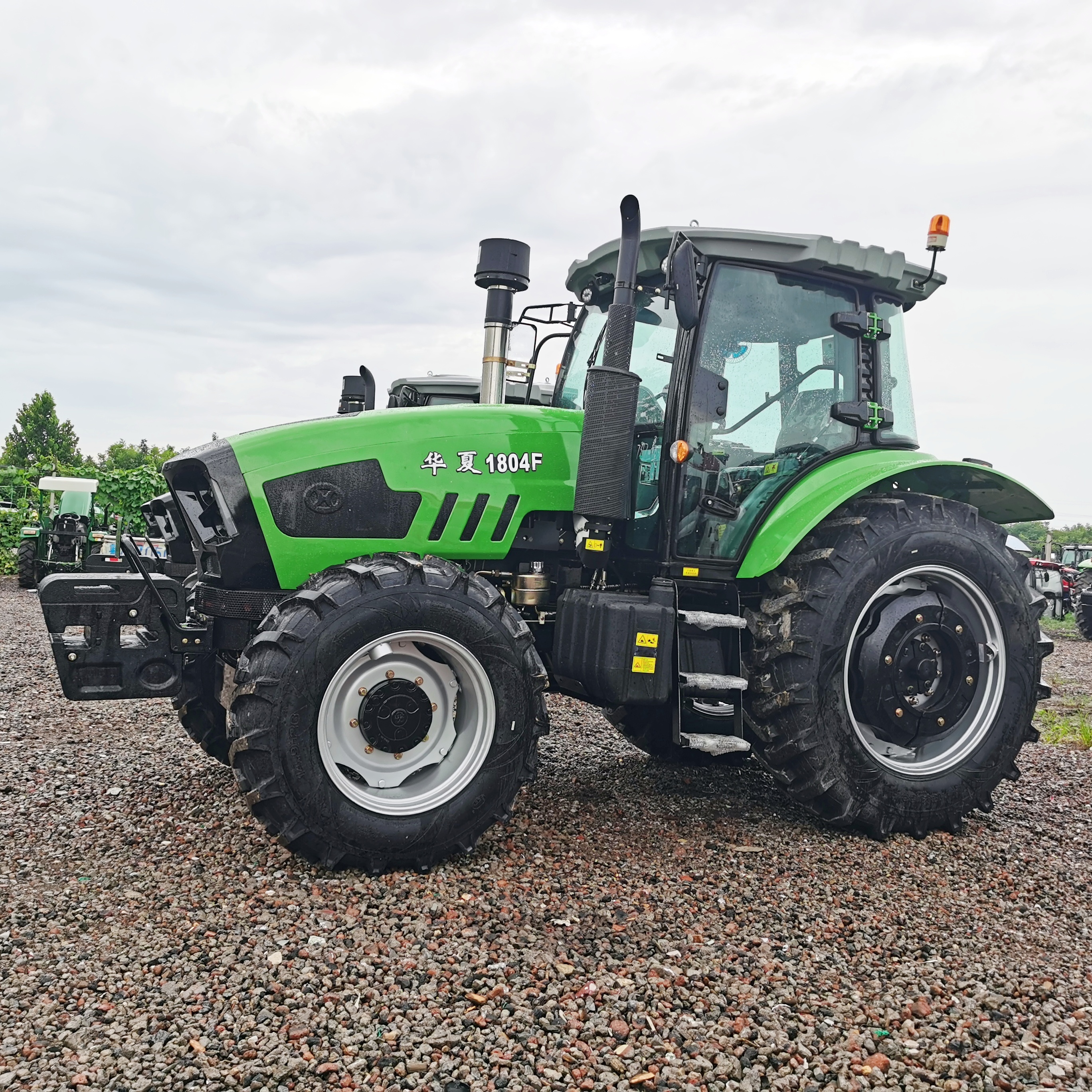

This series tractor is a versatile, high horsepower agricultural tractors. The model has compact structure, convenient operation, flexible steering, traction, versatile and easy maintenance characteristics. The series use TF chassis, four wheel drive, 16F+8R shuttle shifts gear box, hydraulic steering, double stage clutch and the 3-point linkage is adjustable by floating way. The series can choose to equip the roll bar, hydraulic multi-valves, heater and AC cabin

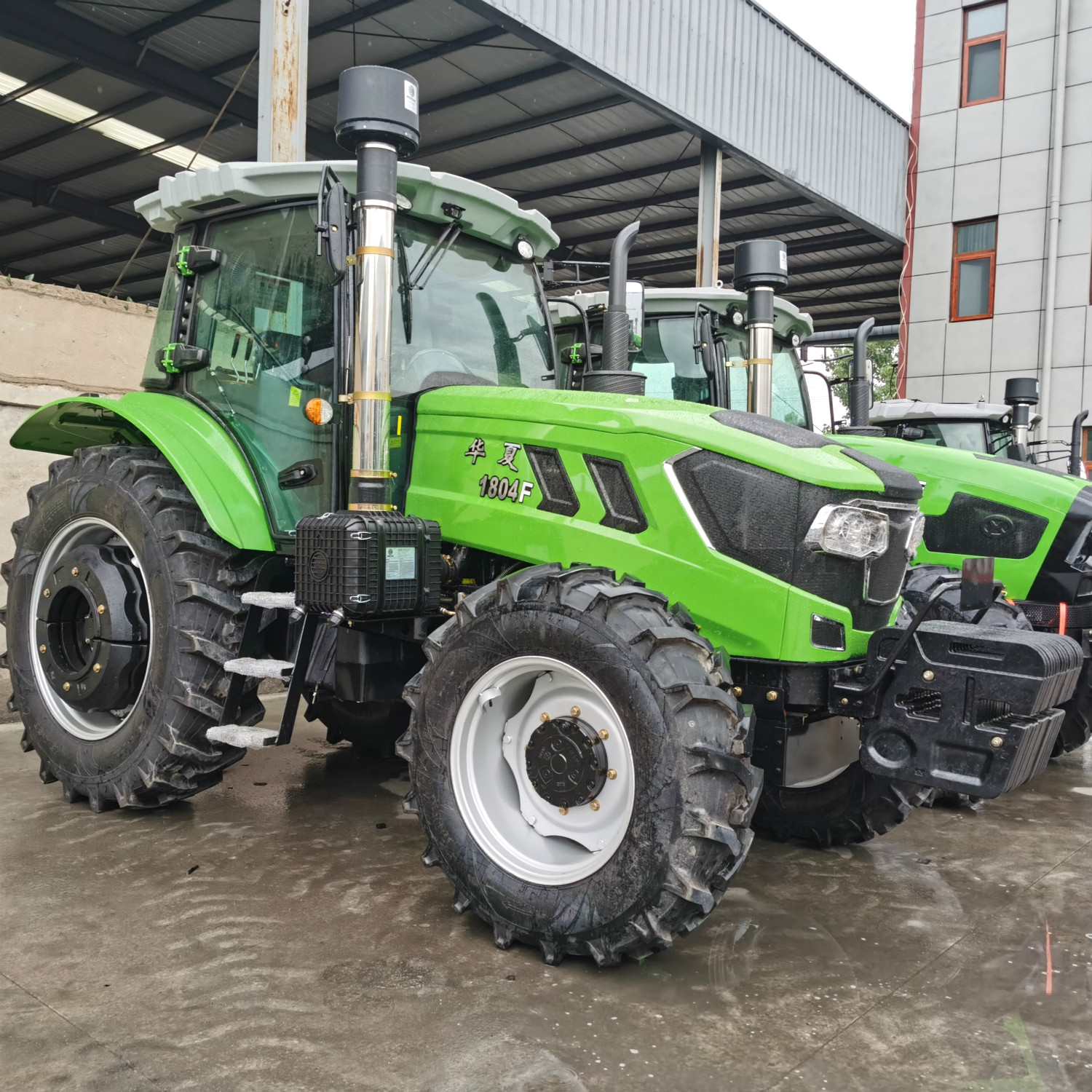

TF series(150hp-180hp)

Product model

HX1504

HX1604

HX1804

Wheel Drive

4x4

Dimension(L*W*H)

5060x2345x2983mm

Weight

5700kg

Front wheel Tread

1784,1792,1912,1954,2074,2082,2202mm adjustable

Rear Wheel Tread

1620-2420mm unlimited adjustable

Wheel Base

2582mm

Min Land Clearance

480mm

Gear shifts

16F+8R

Tyre Size

14.9-26/18.4-38

Steering gear

Hydraulic steering

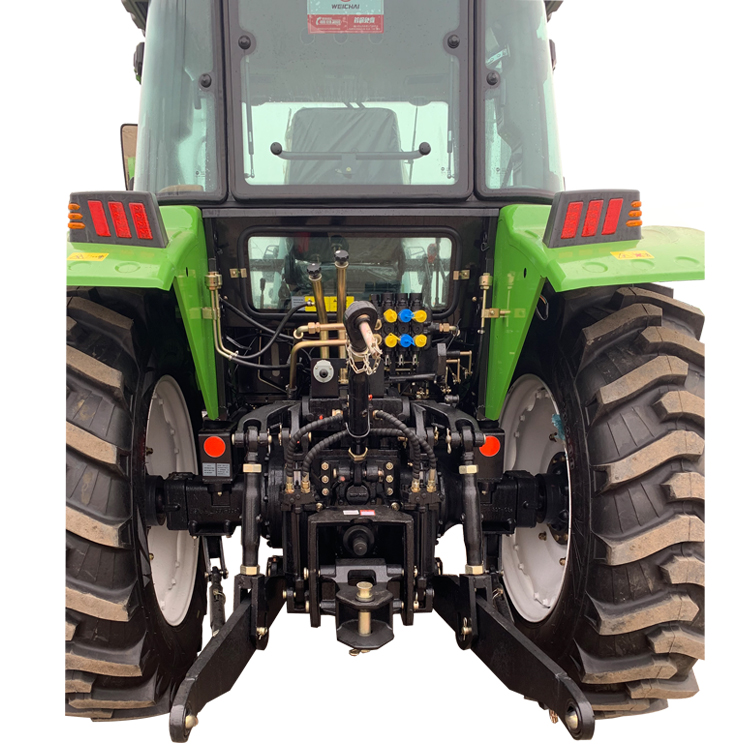

Rear Suspension

Three-point Suspension

Engine Specification

Engine Model

QC or Weichai

Type

Water cooled ,Vertical,4 stroke and Direct injection

Rated Power(kw)

110.2

117.6

132.3

Rated Revolution

2300/2400

Start Way

Electricity Start

Transmission

4×(2+1)×2 shifts

Clutch

Dry friction, Double clutch, Seperate operation

PTO Speed

6 or 8 spline 540/1000

Company overview

Weifang Huaxia Tractor Manufacturing Co.,Ltd. Is located in the world’s capital of kite and the city of green power-Weifang. It is in the Economic Development Area of Weifang and only 3 kilometers to the expressway station of Weifang West, the traffic is very convenient

The area of the company and its factory is about 200,000 square meters and is one modern private enterprise with research, production and sale. The company has pursued perfect and done things seriously. It has the courage of innovation and has insisted on the production idea of high standard and high quality so its products have been optimized and upgraded constantly. And then the enterprise has developed and grown strong steadily. The company has strong technology force and superior machine and equipments with the auto assembly line which is advanced in China. The products are in strict compliance with the international norms of quality system and have mature guarantee service system so they have adopted 2000 edition ISO9001 international quality management system certificate. Further more, HUAXIA brand products have ever been awarded national patents ten times by the State Intellectual Property Office

Package details

complete tractor package. 2 units/40HQ

FAQ

(1). Manufacturer or Trading Company

We are a leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.

(2). MOQ

Mini tractor: 8 units

middle tractor(25-40hp): 2 units

Above 50hp: 1 unit

(3). Spare Parts

Free toolbox and easy damaged parts.

(4). Shippment

We can help you arrange shippment.

(5). Delivery Time

Usually 25 days.  In peak season,30-40 days

(6). Warranty Time

Complete service system, 12 months since arrival of destination port

(7). Payment Terms

We accept 30%T/T in advance, and 70% T/T before delivery

(8). Tractor Options

Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.

(9). Tractor Logo

We have our own logo. And we also can put your logo for free.

(10). Package and Loading

1.complete tractor package: 2 units/20GP, 4 units/40HQ

2.Iron Frame Package: 8 units/20GP, 16 units/40HQ

(11). Tractor Implements

Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.

(12). Part supply

Complete Parts Workshop, and can supply all parts
