Electric equipment
0.6/1kV copper core XLPE insulated PVC sheathed 5-core low voltage power cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
0.6/1kV copper core XLPE insulated PVC sheathed 5-core low voltage power cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 5*6
- Color: black
- Conductor type: Other
- Insulation material: XLPE
- Rangeof application: Other
- Sheath material: PVC
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shannxi, China
About this product
- Size: 5*6
- Color: black
- Conductor type: Other
- Insulation material: XLPE
- Rangeof application: Other
- Sheath material: PVC
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shannxi, China
Product details
| Size | 5*6 |
|---|---|
| Color | black |
| Conductor type | Other |
| Insulation material | XLPE |
| Rangeof application | Other |
| Sheath material | PVC |
| Brand | Other |
| Conductor material | Other |
| Certification | ISO9001Other |
| Application | Other |
| Material shape | Other |
Product details
| Size | 5*6 |
|---|---|
| Color | black |
| Conductor type | Other |
| Insulation material | XLPE |
| Rangeof application | Other |
| Sheath material | PVC |
| Brand | Other |
| Conductor material | Other |
| Certification | ISO9001Other |
| Application | Other |
| Material shape | Other |
From the supplier

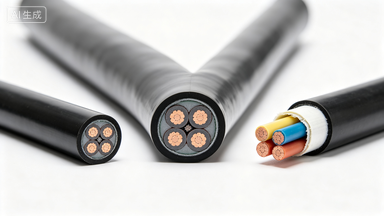

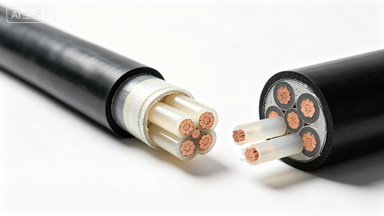

YJV5×6 is a 0.6/1kV copper core XLPE insulated PVC sheathed 5-core low voltage power cable, manufactured in accordance with GB/T 12706.1 standard. It adopts high-purity stranded oxygen-free copper conductor and XLPE insulation. The long-term operating temperature is 90℃, and the maximum short-circuit temperature is 250℃. The outer PVC sheath is wear-resistant, moisture-proof and aging-resistant, which can adapt to various indoor and outdoor laying environments.
With 5 cores and 6mm² cross-sectional area per core, it includes 3 phase wires (yellow/green/red), 1 neutral wire (blue) and 1 protective earth wire (yellow-green bicolor), which is a standard three-phase five-wire cable. It has sufficient ampacity, stable insulation and high safety. It is widely used in complete power distribution systems of buildings, power supply of industrial plants, municipal power distribution of communities, power supply of large-scale equipment and indoor and outdoor fixed laying projects, suitable for various installation methods such as conduit embedding and surface wiring.
From the supplier
YJV5×6 is a 0.6/1kV copper core XLPE insulated PVC sheathed 5-core low voltage power cable, manufactured in accordance with GB/T 12706.1 standard. It adopts high-purity stranded oxygen-free copper conductor and XLPE insulation. The long-term operating temperature is 90℃, and the maximum short-circuit temperature is 250℃. The outer PVC sheath is wear-resistant, moisture-proof and aging-resistant, which can adapt to various indoor and outdoor laying environments.
With 5 cores and 6mm² cross-sectional area per core, it includes 3 phase wires (yellow/green/red), 1 neutral wire (blue) and 1 protective earth wire (yellow-green bicolor), which is a standard three-phase five-wire cable. It has sufficient ampacity, stable insulation and high safety. It is widely used in complete power distribution systems of buildings, power supply of industrial plants, municipal power distribution of communities, power supply of large-scale equipment and indoor and outdoor fixed laying projects, suitable for various installation methods such as conduit embedding and surface wiring.
